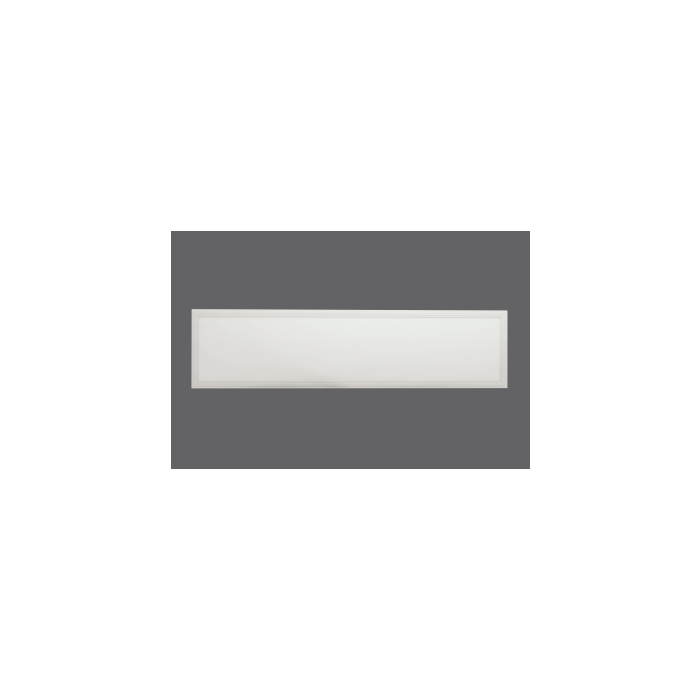

Keystone KT-PLED40-14-8xx-VDIM-P 1x4 LED PanelEdge 40W 0-10V Dimming
- Keystone KT-PLED40-14-8xx-VDIM
Keystone 1x4 LED Panel Light DLC or DLC Premium
Keystone's PanelEdge LED Flat Panels provide an architectural grade, energy-saving LED solution for converting fluorescent fixtures. High quality laser-etched PMMA resin light guide plate offers optimal light diffusion with no risk of yellowing over product lifetime. 0-10V dimming standard. Listed on DLC QPL and also available in DLC Premium at 125 lumens per watt. 7-year manufacturer warranty. Available in 1x4, 2x2 and 2x4 configurations and in color temperatures of 3500K, 4000K and 5000K. Suitable for surface mount or suspension mount applications with optional accessories. Must be ordered in multiples of 2 for shipping purposes.
Brochures & Cut Sheets
Keystone 1x4 PanelEdge Spec Sheet
Keystone 1x4 DLC Premium PanelEdge Spec Sheet
| Manufacturer | Keystone |
|---|---|
| Watts | 40W |
| Lumens | 4050-4150 (4950-5050 DLC Premium) |
| Lumens Per Watt | 100 (125 DLC Premium) |
| Volts | 120-277V |
| Color Temperature | 3500K/4000K/5000K |
| CRI | 82 |
| Beam Angle | N/A |
| Dimmable | 0-10V |
| Nominal Size | 1x4 |
| Length (M.O.L.) Inches | 47.76" |
| Width (Inches) | 11.87" |
| Height (Inches) | 0.32" |
| Rated Hours | 60,000 |
| DLC Listed | DLC/DLC Premium |
| Warranty | 7 Year |
| Manufacturer Part # | KT-PLED40-14-8xx-VDIM |
