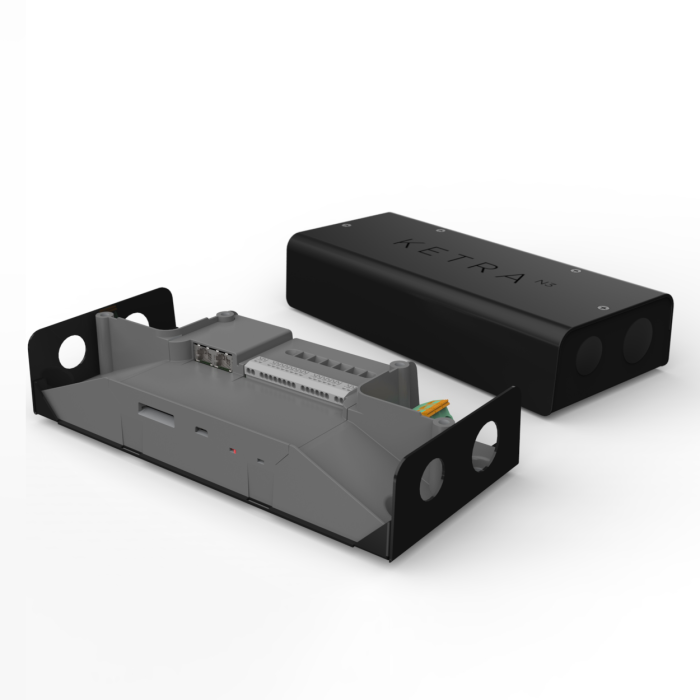

Ketra N3 Satellite for LED Color-changing Screw-In Lamps & Fixtures

Ketra N3 Satellite for Ketra Luminaires

The Ketra N3 Satellite enables Ketra's luminaires to join the Ketra control network. Whether it is Ketra's screw-in lamps or their LED Luminaires like the P4, L3I or L4R, connecting the N3 satellite provides all the functionality needed. Wireless networking for easy installation. On-board content storage and astronomical time clock. Multiple control inputs and outputs for integration of third-party control and lighting products. Compatible with standard occupancy and daylight sensors. For large orders of Ketra lamps (25+) please call or use contact form.

• Connection Class 1 - AC Power In (3 Conductor 120V) - 10-16AWG
• Connection Class 1 - AC Power Out (4 Conductor) - Standard Ketra Leader Cable or 10-16AWG
• Connection Class 2 - Multifunction I/O - 16-24AWG
• 0-10V Input/Output
• Contact Closure Input/Output
• 0-24V Input
• Unit consumes 5W electrical power - to compute total load, add 5W to sum of all connected luminaire power ratings.
• USB Port - 1 Micro-B USB Console Port for firmware updates
• UL Damp Location, IP20
• UL, cUL, RoHS, FCC Class A Certifications
• Operating Temperature: -20° to 50°C
• Storage Temperature: -20° to 80°C
• Humidity: 0-95% Non-Condensing
• Manufacturer Number: Ketra N31RECBK
