Green Creative 35896 15T8T5HEDRIVER/SD/2CH SelectDrive 2-Lamp EXTernal LED Driver Case/6
- Buy 2 for $149.95 each and save 3%
- Buy 4 for $137.95 each and save 11%
- Buy 8 for $124.95 each and save 19%
- Green Creative 35896 15T8T5HEDRIVER/SD/2CH - Case/6

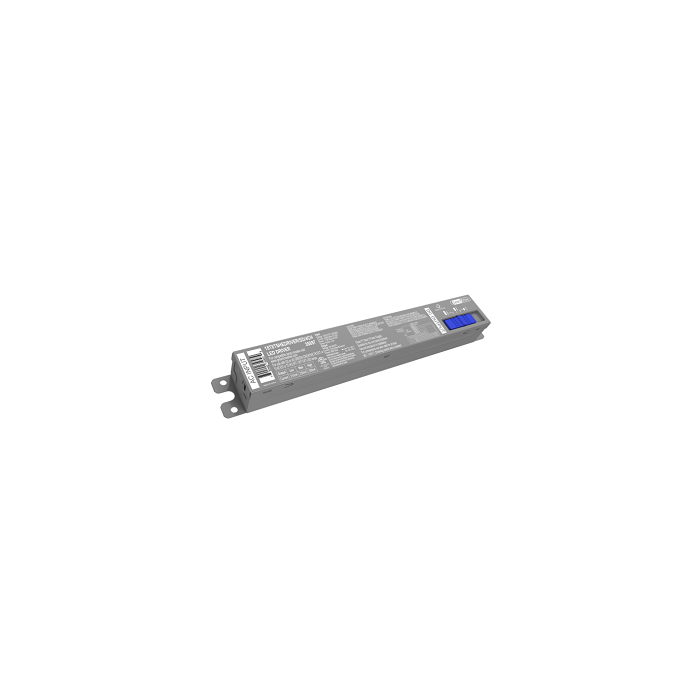

Green Creative 35896 15T8T5HEDRIVER/SD/2CH 2-Channel EXTernal LED Driver Case of 6
Green Creative has new Type C LED drivers that power T8 + T5 lamps! Their SelectDrive EXTernal LED drivers have a switch on them that allows you to change the light output to three different levels. These remote LED drivers power Green Creative's EXTernal LED T8 and T5 lamps and allow for 0-10V dimming (dimmer not included). Superior system efficiency at 158 lumens per watt along with crisp, flicker-free lighting. EXTernal drive Type C systems operate with either shunted or non-shunted sockets.
Brochures & Cut Sheets
Manufacturer | Green Creative |
---|---|
Volts | 120-277V |
Input Current Max | N/A |
Input Power Max | N/A |
Input Frequency | 50/60Hz |
Max. Current | 0.31 |
Power Factor | >0.9 |
THD Max | <20% |
Output Current | 300mA/250mA/210mA |
Output Voltage | 30-48VDC |
Output Power | N/A |
Efficiency | >.9% |
Case Style | N/A |
Dimmable | 0-10V |
Length (M.O.L.) Inches | 9.88 |
Width (Inches) | 5.63 |
Height (Inches) | 2.75 |
Maximum Temp | 194°F |
Minimum Starting Temp | -20°F |
Wet/Damp Rated | Damp Rated |
Certifications | UL |
Warranty | 5 Year |
Manufacturer Part # | 15T8T5HEDRIVER/SD/2CH |
Manufacturer Order # | 35896 |
Premier Part # | 35896 |
