GE 93136147 LED25T/DR/D4L Lightech Dimming Driver 100W Max 4-lamp Case/10
- Buy 3 for $422.95 each and save 5%
- Buy 6 for $379.95 each and save 14%
- GE 93136147 LED25T/DR/D4L - Case/10

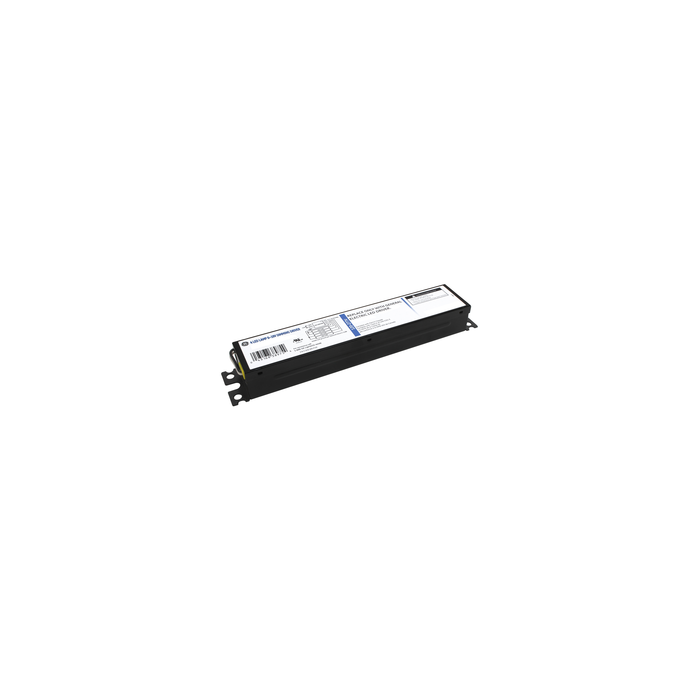

GE 93136147 LED25T/DR/D4L Lightech Dimming Driver 4' LED 4-lamp 100W
GE Lightech External Dimming Driver for GE 4' Type C LED lamps. GE 93136147 operates up to four 4' LED T5 or T8 lamps with a max of 100W, and is capable of functioning with a 0-10V dimmer to allow for dimming with the Type C LED T5 lamps.
Brochures & Cut Sheets
| Manufacturer | GE |
|---|---|
| Volts | 120-277V |
| Input Current Max | N/A |
| Input Power Max | 100W |
| Input Frequency | 60Hz |
| Max. Current | N/A |
| Power Factor | >0.9 |
| THD Max | N/A |
| Output Current | 0.72*4 |
| Output Voltage | 26-34V |
| Output Power | N/A |
| Efficiency | >.9% |
| Case Style | N/A |
| Dimmable | 0-10V |
| Length (M.O.L.) Inches | 16.7 |
| Width (Inches) | 1.7 |
| Height (Inches) | 1.2 |
| Maximum Temp | 104°F |
| Minimum Starting Temp | -4°F |
| Wet/Damp Rated | Damp Rated |
| Certifications | UL |
| Warranty | 5 Year |
| Manufacturer Part # | LED25T/DR/D4L |
| Manufacturer Order # | 93136147 |
| Premier Part # | 93136147 |
