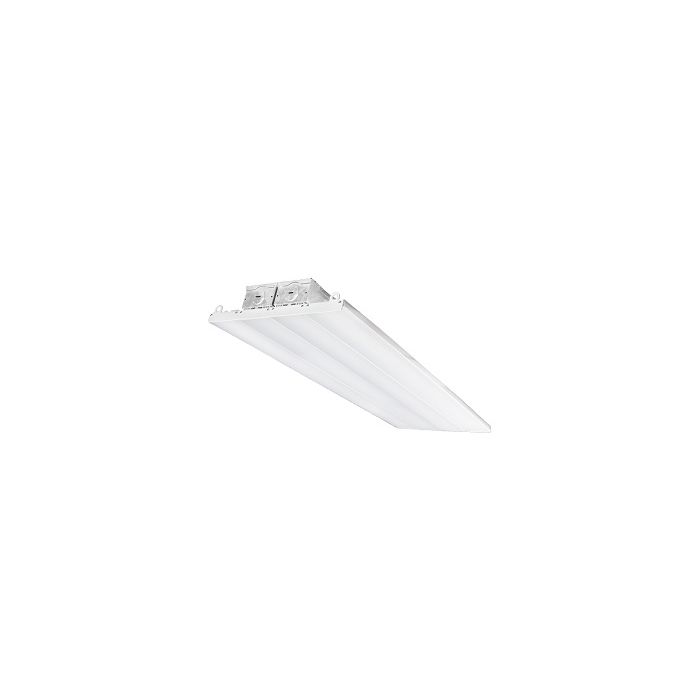

TCP QHB2UZDE450KLS1 Q-Series 2' LED Linear Highbay 130W 5000K 120-277V w/ PIR Motion Sensor
- Buy 10 for $174.95 each and save 13%
- Buy 20 for $159.95 each and save 20%
- Premier# LLHB2FT50K130W/PIR-T
TCP QHB2UZDE450KLS1 Q-Series 2' LED Linear Highbay 130W 5000K 120-277V w/ PIR Motion Sensor
The TCP Q-Series of LED Highbays is a linear LED highbay with the efficiency and features that you need! This 130W version delivers 17,550 lumens and replaces ~250W-320W HID sources. This version includes the LS1 adder which is a factory-installed PIR motion sensor on the fixture. Designed with a standard frosted lens for glare control; no shadows just smooth, even lighting. Lightweight design for an easy install. The QHB2 is available in 110W (15,100 lumens), 130W (17,550 lumens), 165W (25,100 lumens), 220W (30,500 lumens) and 260W (35,000 lumens), allowing these fixtures to replace anywhere from 250W HID fixtures up to 400W+ highbays. Damp location rated and comes with 0-10V smooth no flicker dimming capability. Wide 160 Degree beam spread reduces cave effect. Includes 2 Tong Hangers, 5' Jack Chains, and 6-Foot Pre-wired Cord.
Brochures & Cut Sheets
Manufacturer | TCP |
---|---|
Volts | 120-277V |
HID Equivalent | 250W-320W |
Fluorescent Equivalent | N/A |
Watts | 130W |
Lumens | 17,550 |
Lumens Per Watt | 135 |
CRI | N/A |
Color Temperature | 5000K |
Kelvin | 5000K |
Dimmable | 0-10V |
Distribution | Wide |
Finish | N/A |
Nominal Size | 24" |
Length (M.O.L.) Inches | 23.8 |
Height (Inches) | 2.6 |
Width (Inches) | 6.8 |
Wet/Damp Rated | Damp rated |
Maximum Temp | 122ºF |
DLC Version | DLC Standard |
Rated Hours | 50,000 |
Warranty | 5 Year |
Manufacturer Part # | QHB2UZDE450KLS1 |
Manufacturer Order # | QHB2UZDE450KLS1 |
Premier Part # | LLHB2FT50K130W/PIR-T |
