TCP QHB2UZDA350K Q-Series 2' LED Linear Highbay 165W 5000K 120-277V
- Buy 11 for $142.50 each and save 10%
- Buy 30 for $124.95 each and save 21%
- Premier# LLHB2FT50K165W-T

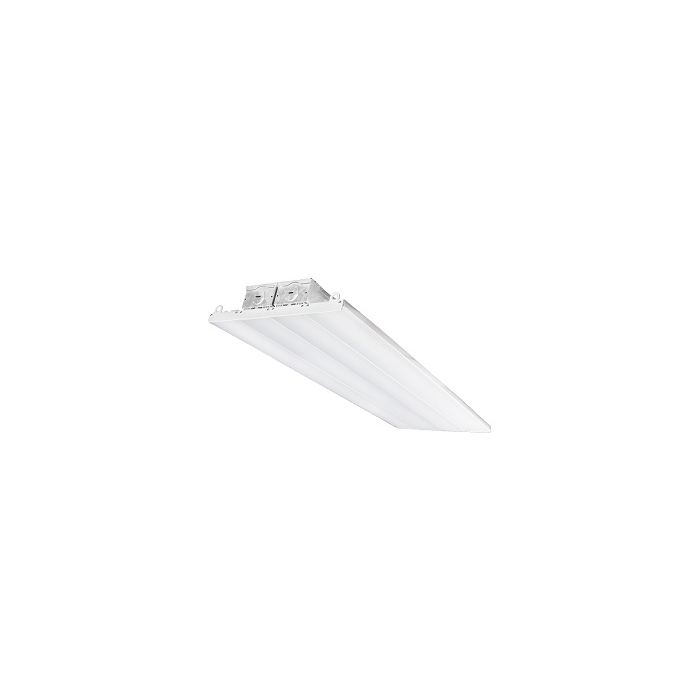

TCP QHB2UZDA350K Q-Series 2' LED Linear Highbay 165W 5000K 120-277V
The TCP Q-Series of LED Highbays is a linear LED highbay with the efficiency and features that you need! This 165W version delivers 25,100 lumens and replaces ~320W-400W HID sources. Designed with a standard frosted lens for glare control; no shadows just smooth, even lighting. Lightweight design for an easy install. The QHB2 is available in 110W (15,100 lumens), 130W (17,550 lumens), 165W (25,100 lumens), 220W (30,500 lumens) and 260W (35,000 lumens), allowing these fixtures to replace anywhere from 250W HID fixtures up to 400W+ highbays. Damp location rated and comes with 0-10V smooth no flicker dimming capability. Wide 160 Degree beam spread reduces cave effect. Includes 2 Tong Hangers, 5' Jack Chains, and 6-Foot Pre-wired Cord.
Brochures & Cut Sheets
| Manufacturer | TCP |
|---|---|
| Volts | 120-277V |
| HID Equivalent | 320W-400W |
| Fluorescent Equivalent | N/A |
| Watts | 165W |
| Lumens | 25,100 |
| Lumens Per Watt | 152 |
| CRI | N/A |
| Color Temperature | 5000K |
| Kelvin | 5000K |
| Dimmable | 0-10V |
| Distribution | Wide |
| Finish | N/A |
| Nominal Size | 24" |
| Length (M.O.L.) Inches | 23.8 |
| Height (Inches) | 2.6 |
| Width (Inches) | 6.8 |
| Wet/Damp Rated | Damp rated |
| Maximum Temp | 122ºF |
| DLC Version | DLC Standard |
| Rated Hours | 50,000 |
| Warranty | 5 Year |
| Manufacturer Part # | QHB2UZDA350K |
| Manufacturer Order # | QHB2UZDA350K |
| Premier Part # | LLHB2FT50K165W-T |
