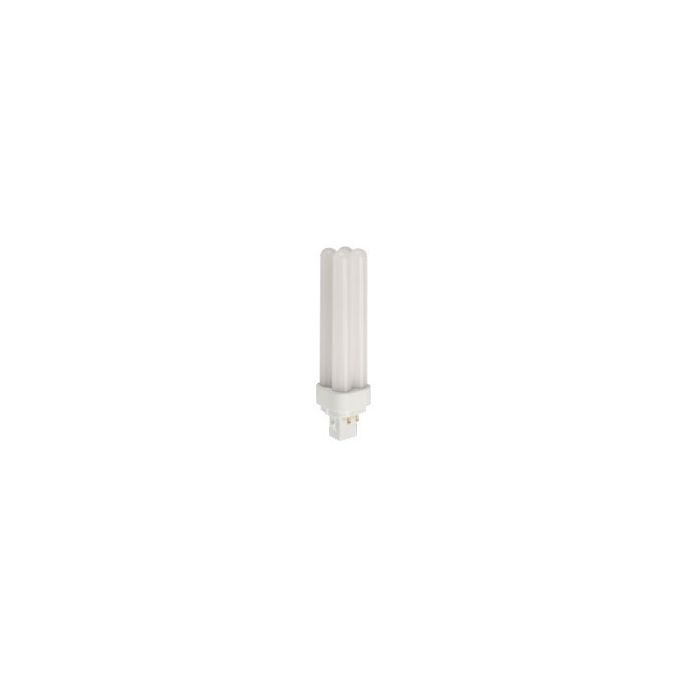

TCP PLUD2030K LED PL Universal Quad 4-Pin 10.5W 3000K Uses Ballast G24q **DISCONTINUED**
- Premier# LPL30K10.5WG24/B-T
- TCP PLUD2030K LED PL Quad 10.5W 3000K
TCP PLUD2030K LED PL Universal Quad 4-Pin 10.5W 3000K Uses Ballast G24q **DISCONTINUED**
TCP LED PL lamps come in the same shape and style as the CFL lamps that they replace. TCP's 10.5W LED PL Quad and 15-16W LED PL 3U are designed to work on existing ballasts (see cut sheet below for compatibility). G24q/GX24q base (4-pin). 10.5W lamp replaces 13W-18W CFL, 15W replaces 26W CFL and the 16W replaces 32W-42W CFL lamps. Available in 2700K, 3000K, 3500K, 4100K and 5000K color temperatures. 5-year warranty. Non-Dimmable.
Brochures & Cut Sheets
| Manufacturer | TCP |
|---|---|
| Watts | 10.5W |
| CFL Equivalent | 13W-18W |
| Lamp Type | Quad PL |
| Lumens | 950 |
| Lumens Per Watt | 90 |
| Volts | 120-277V |
| CRI | 80 |
| Color Temperature | 3000K |
| Dimmable | No |
| Base Type | G24q/GX24q |
| Beam Angle | 360° |
| Orientation | Horizontal |
| Lens Type | Frosted |
| Length (M.O.L.) Inches | 5.5 |
| Width (Inches) | 1.08 |
| Height (Inches) | N/A |
| Rated Hours | 20,000 |
| DLC Listed | No |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 40°C |
| Minimum Starting Temp | -22°C |
| Certifications | UL |
| Case Quantity | 12 |
| Warranty | 5 Year |
| Manufacturer Part # | PLUD2030K |
| Manufacturer Order # | PLUD2030K |
| Premier Part # | LPL30K10.5WG24/B-T |
