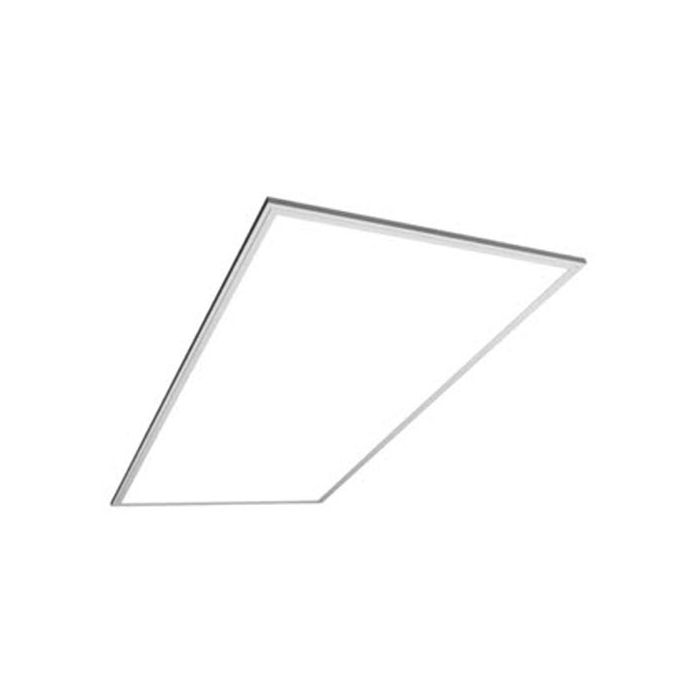

TCP DTF4UZD29CCT 2x4 LED Direct Troffer Backlit Panel 29W CCT Color Selectable
- Buy 10 for $88.95 each and save 11%
- Premier# LBLP2X4CCT29W-T
- TCP DTF4UZD29CCT - 2x4 CCT Selectable 38W DT Series Troffer
TCP DTF4UZD29CCT 2x4 LED Direct Troffer Backlit Panel 29W CCT Color Selectable
TCP's LED Direct Troffer luminaires are cost-effective, high-efficiency and feature-packed LED replacement solutions for current fluorescent T5, T8 and T12 fixtures. Designed with a slim-look and backlit panel style for even diffusion and superior uniformity that meets or exceeds previous generation edge-lit panels. Myriad options possible to fit any application! Available in multiple color temps as well as various troffer sizes including 1x4, 2x2, 2x4 and 0.5x4. CCT selectable for those undecided on color temp as they can change it once installed. Multiple wattage and lumen packages for most sizes as well as either a frosted or prismatic lens. Emergency backup options for added cost. Surface mount kits and recess mount flange kits available. Applications include offices, schools, retail, healthcare, hospitality and other applications where T-grid and commercial ceilings are commonly found. High voltage options available. Compatible with TCP's SmartBox, inquire within for more information.
Brochures & Cut Sheets
| Manufacturer | TCP |
|---|---|
| Watts | 29W |
| Fluorescent Equivalent | N/A |
| Lumens | 3300 |
| Lumens Per Watt | 114 |
| Volts | 120-277V |
| Color Temperature | 3500K/4100K/5000K |
| Kelvin | 3500K/4000K/5000K |
| CRI | >80 |
| Beam Angle | 120° |
| Dimmable | 0-10V |
| Power Factor | >90% |
| Lens Type | N/A |
| Nominal Size | 2x4 |
| Length (M.O.L.) Inches | 48 |
| Width (Inches) | 24 |
| Height (Inches) | 2.75 |
| Rated Hours | 50,000 |
| DLC Version | DLC Standard |
| DLC Listed | Yes |
| Warranty | 5 Year |
| Manufacturer Part # | DTF4UZD29CCT |
| Premier Part # | LBLP2X4CCT29W-T |
