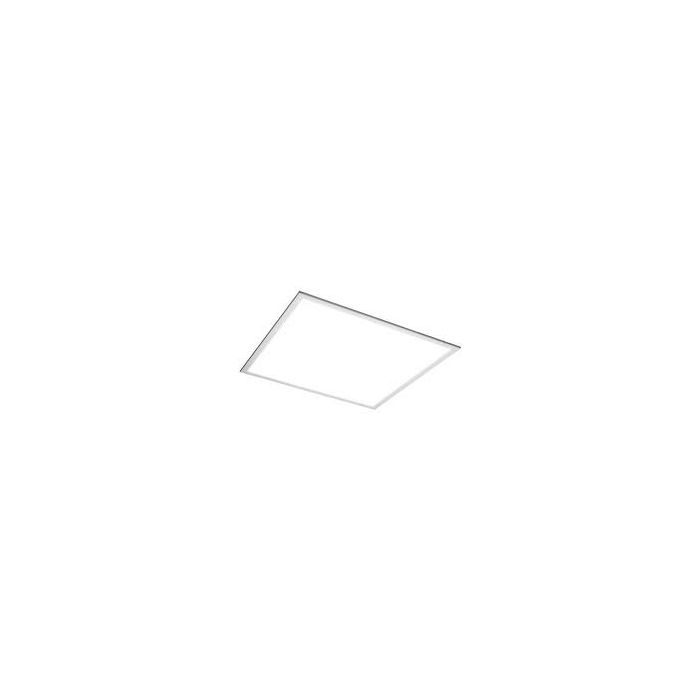

TCP DTF2UZD2335KEB 2x2 LED Direct Troffer Backlit 23W 3500K with Emergency Backup
- Buy 10 for $214.28 each and save 11%
- Premier# LBLP2X235K23W/EM-T
- TCP DTF2UZD2335KEB - 2X2 3500K 23W DT Series Troffer with Emergency Backup
TCP DTF2UZD2335KEB 2x2 LED Direct Troffer Backlit 23W 3500K with Emergency Backup
TCP's LED Direct Troffer luminaires are cost-effective, high-efficiency and feature-packed LED replacement solutions for current fluorescent T5, T8 and T12 fixtures. Designed with a slim-look and backlit panel style for even diffusion and superior uniformity that meets or exceeds previous generation edge-lit panels. Myriad options possible to fit any application! Available in multiple color temps with rare options like 2700K and 6500K, in addition to color selectable and your standard 3000K, 3500K, 4100K and 5000K. Various troffer sizes including 1x4, 2x2, 2x4 and 0.5x4. Multiple wattage and lumen packages for most sizes with a frosted lens standard and prismatic lens as special order. Emergency backup options for added cost. Surface mount kits and recess mount flange kits available. Applications include offices, schools, retail, healthcare, hospitality and other applications where T-grid and commercial ceilings are commonly found. High voltage options available. Compatible with TCP's SmartBox, inquire within for more information.
Brochures & Cut Sheets
| Manufacturer | TCP |
|---|---|
| Watts | 23W |
| Fluorescent Equivalent | N/A |
| Lumens | 2600 |
| Lumens Per Watt | 113 |
| Volts | 120-277V |
| Color Temperature | 3500K |
| Kelvin | 3500K |
| CRI | >80 |
| Beam Angle | 120° |
| Dimmable | 0-10V |
| Power Factor | >90% |
| Lens Type | Frosted |
| Nominal Size | 2x2 |
| Length (M.O.L.) Inches | 24 |
| Width (Inches) | 24 |
| Height (Inches) | 2.75 |
| Rated Hours | 50,000 |
| DLC Version | DLC Standard |
| DLC Listed | Yes |
| Warranty | 5 Year |
| Manufacturer Part # | DTF2UZD2335KEB |
| Premier Part # | LBLP2X235K23W/EM-T |
