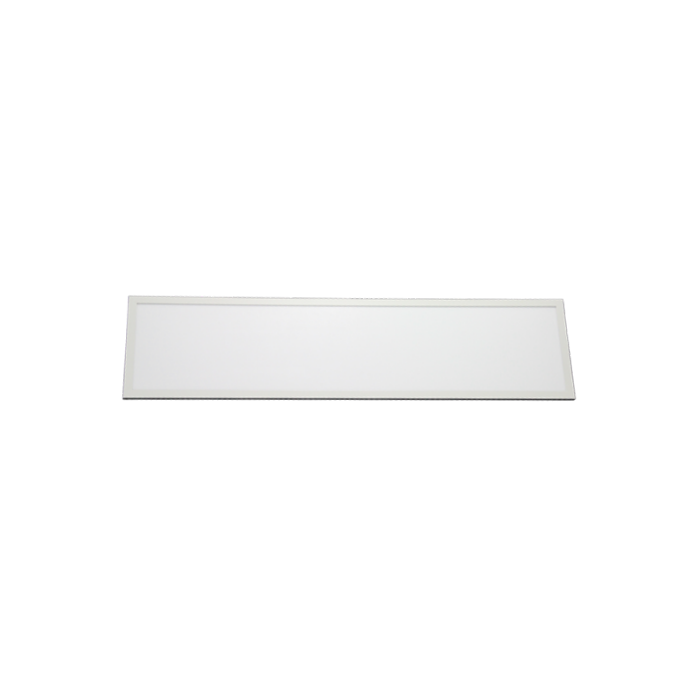

TCP DTF1UZDSW2CCT12V 1x4 LED Direct Troffer 32W/26W/18W 35K/41K/5K Sensor-Ready 2-Pack
- Buy 5 for $132.95 each and save 7%
- Premier# LBLP1X4CCTPS32W-T
- TCP DTF1UZDSW2CCT12V - 1X4 3500K/4000K/5000K 18W/26W/32W Pack of 2
TCP DTF1UZDSW2CCT12V 1x4 LED Direct Troffer 32W/26W/18W 35K/41K/5K Sensor-Ready 2-Pack
The newest DTF series LED panel light from TCP is loaded with fixtures! These are now power-selectable between 18W, 26W and 32W in the 1x4 version, delivering between 2600-4200 lumens. It is also color-selectable between 3500K, 4100K and 5000K. This flexibility ensures it will please in nearly any application. Operates on 120-277V but is dimmable on 0-10V as well. This version with the 12V at the end means the fixture can easily add a sensor for added control. Available in 2x4, 2x2 and 1x4 sizes. Slim, backlit diffusion. Emergency backup options for added cost. Surface mount kits and recess mount flange kits available. Applications include offices, schools, retail, healthcare, hospitality and other applications where T-grid and commercial ceilings are commonly found. Sold by the pack of 2.
Brochures & Cut Sheets
| Manufacturer | TCP |
|---|---|
| Watts | 18W/26W/32W |
| Fluorescent Equivalent | N/A |
| Lumens | 2600/3400/4200 |
| Lumens Per Watt | 131-144 |
| Volts | 120-277V |
| Color Temperature | 3500K/4100K/5000K |
| Kelvin | 3500K/4000K/5000K |
| CRI | >80 |
| Beam Angle | 120° |
| Dimmable | 0-10V |
| Power Factor | >90% |
| Lens Type | Frosted |
| Nominal Size | 1x4 |
| Length (M.O.L.) Inches | 48 |
| Width (Inches) | 12 |
| Height (Inches) | 2.75 |
| Rated Hours | 50,000 |
| DLC Version | DLC Standard |
| DLC Listed | Yes |
| Warranty | 5 Year |
| Manufacturer Part # | DTF1UZDSW2CCT12V |
| Manufacturer Order # | N/A |
| Premier Part # | LBLP1X4CCTPS32W-T |
