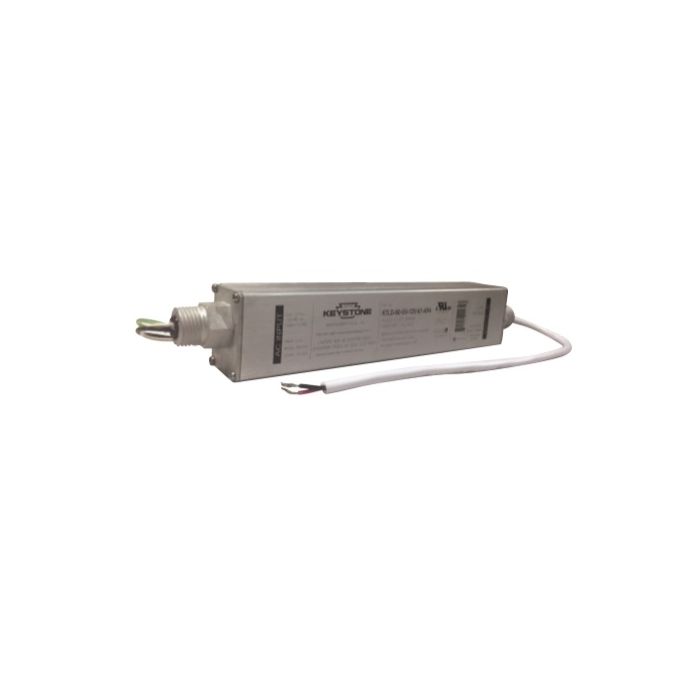

Keystone Technologies KTLD-60-UV-12V-67-AP4 60W Constant Voltage LED Driver
- Keystone KTLD-60-UV-12V-67-AP4
Keystone Technologies KTLD-60-UV-12V-67-AP4 60W Constant Voltage LED Driver
Constant Voltage LED Pocket Driver from Keystone. 12V output, 70W input max. Max current of 5 amps. Over Current and Short Circuit Protection. Type 1 Outdoor, Suitable for Wet Locations. 9.65" length, 1.90" width, 1.50" height. AP4 case style.
| Manufacturer | Keystone |
|---|---|
| Volts | 12V |
| Input Current Max | N/A |
| Input Power Max | 70W |
| Input Frequency | N/A |
| Max. Current | 0.66A @ 120V 0.29A @ 277V |
| Power Factor | >0.9 |
| THD Max | N/A |
| Output Current | 5A |
| Output Voltage | 12Vdc |
| Output Power | 60W Max |
| Efficiency | 86% |
| Case Style | AP4 |
| Dimmable | Fixed Output |
| Length (M.O.L.) Inches | 9.65 |
| Width (Inches) | 1.90 |
| Height (Inches) | 1.50 |
| Maximum Temp | 194°F |
| Minimum Starting Temp | -40°C |
| Wet/Damp Rated | IP67 |
| Certifications | SAM |
| Warranty | 5 Year |
| Manufacturer Part # | KTLD-60-UV-12V-67-AP4 |
| Manufacturer Order # | KTLD-60-UV-12V-67-AP4 |
| Premier Part # | KTLD-60-UV-12V-67-AP4 |
