Keystone KTLD-4LT8-UV-PS15C-BL-VDIM 4-Lamp Selectable Dimming Driver External LED Tubes
- Buy 10 for $29.95 each and save 3%
- Keystone KTLD-4LT8-UV-PS15C-BL-VDIM

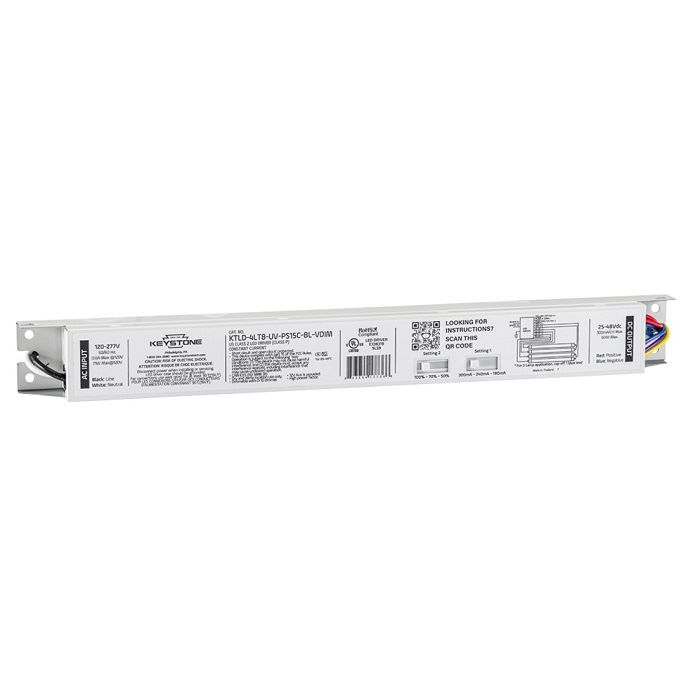

Keystone KTLD-4LT8-UV-PS15C-BL-VDIM 4-Lamp Power-Selectable Driver External LED Tubes
Designed for use with Keystone's External Drive Type C LED T8 tubes. Operates up to 4 lamps with a 71W max. Can be used to power Keystone's 2', 3', 4' and Ubend External Drive lamps ending in -E. This driver operates up to 4 of these 4' lamps and allows for crisp 0-10V dimming (dimmer not included).
| Manufacturer | Keystone |
|---|---|
| Shipping Speed | Usually ships in 1-2 business days |
| Volts | 120-277V |
| Input Current Max | 0.60 |
| Input Power Max | 71W |
| Input Frequency | 50/60Hz |
| Max. Current | 300 mA |
| Power Factor | >0.9 |
| THD Max | N/A |
| Output Current | 300 mA |
| Output Voltage | 25-48Vdc |
| Output Power | 60W |
| Efficiency | 86% |
| Case Style | N/A |
| Dimmable | 0-10V |
| Length (M.O.L.) Inches | 11.02 |
| Width (Inches) | 1.18 |
| Height (Inches) | 0.87 |
| Maximum Temp | 113°F |
| Minimum Starting Temp | -4°F |
| Wet/Damp Rated | Damp Rated |
| Certifications | UL |
| Warranty | 10 Year |
| Manufacturer Part # | KTLD-4LT8-UV-PS15C-BL-VDIM |
| Manufacturer Order # | N/A |
| Premier Part # | KTLD-4LT8-UV-PS15C-BL-VDIM |
