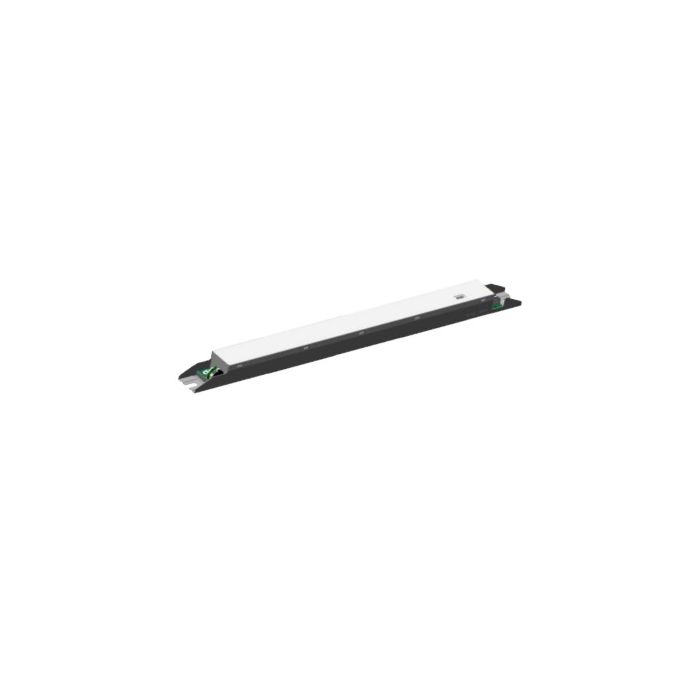

Keystone KTLD-100-UV-SC3000-56-VDIM-U4 /USB SmartCurrent Programmable LED Driver
- Buy 7 for $59.95 each and save 8%
- Premier# NLED1238 - KTLD-100-UV-SC3000-56-VDIM-U4 /USB
Keystone KTLD-100-UV-SC3000-56-VDIM-U4 /USB SmartCurrent Programmable LED Driver
Keystone Smart Current Programmable LED Drivers eliminate the guesswork with finding the right LED driver for your application. These programmable LED drivers offer the versatility needed to replace various LED drivers. Smart Current features dim-to-off mode, enabling dimming down to 1%, for precise tuning of output current. Now featuring a built-in USB-C Port for easy programming with a computer or phone. 100W version has an output current of 1500-3000mA with output voltage in the 10-56V range.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Volts | 120-277V |
| Input Current Max | 1.02A @ 120V |
| Input Power Max | N/A |
| Input Frequency | 50/60Hz |
| Max. Current | N/A |
| Power Factor | >0.9 |
| THD Max | <20% under 120-277V |
| Output Current | 1500-3000mA |
| Output Voltage | 10-56V |
| Output Power | 100W |
| Efficiency | 89% |
| Case Style | U4 |
| Dimmable | 0-10V |
| Length (M.O.L.) Inches | 16.89 |
| Width (Inches) | 1.18 |
| Height (Inches) | 1.00 |
| Maximum Temp | 122°F |
| Minimum Starting Temp | -40°F |
| Wet/Damp Rated | N/A |
| Certifications | UL 8750 |
| Warranty | 5 Year |
| Manufacturer Part # | KTLD-100-UV-SC3000-56-VDIM-U4 /USB |
| Manufacturer Order # | KTLD-100-UV-SC3000-56-VDIM-U4 /USB |
| Premier Part # | NLED1238 |
