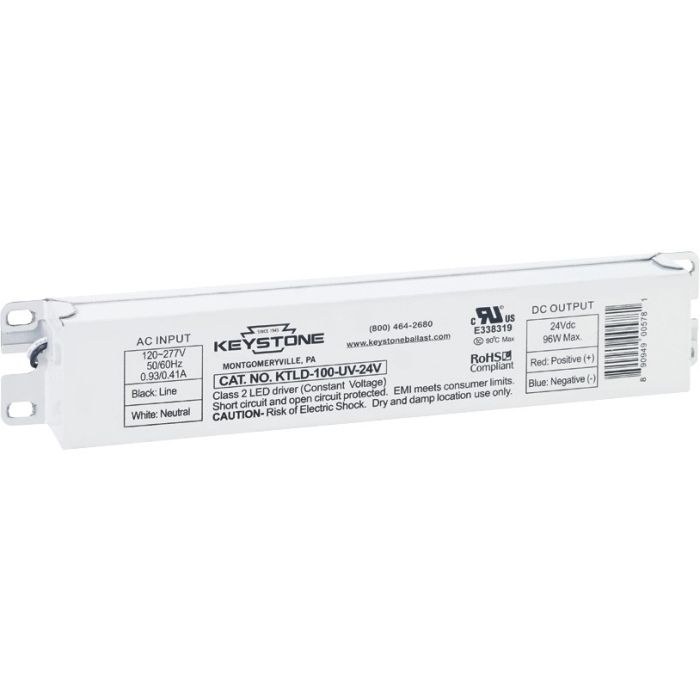

Keystone KTLD-100-UV-24V 100W Max 24V Output Constant Voltage
- Premier# NSB0147
- Keystone KTLD-100-UV-24V
Keystone KTLD-100-UV-24V 100W Max 24V Output Constant Voltage. Often used as an external LED driver to power sign tubes (up to 100W max per driver).
| Manufacturer | Keystone |
|---|---|
| Volts | 120-277V |
| Input Current Max | 0.94A @ 120V |
| Input Power Max | 110W |
| Input Frequency | 50/60Hz |
| Max. Current | 0.41A @ 277V |
| Power Factor | >0.9 |
| THD Max | <20% under 120-277V |
| Output Current | N/A |
| Output Voltage | 24Vdc |
| Output Power | 96W |
| Efficiency | 87% |
| Case Style | L5 |
| Dimmable | Fixed Output |
| Length (M.O.L.) Inches | 9.50 |
| Width (Inches) | 1.70 |
| Height (Inches) | 1.18 |
| Maximum Temp | 194°F |
| Minimum Starting Temp | N/A |
| Wet/Damp Rated | Damp Rated |
| Certifications | UL |
| Warranty | 5 Year |
| Manufacturer Part # | KTLD-100-UV-24V |
| Manufacturer Order # | KTLD-100-UV-24V |
| Premier Part # | NSB0147 |
