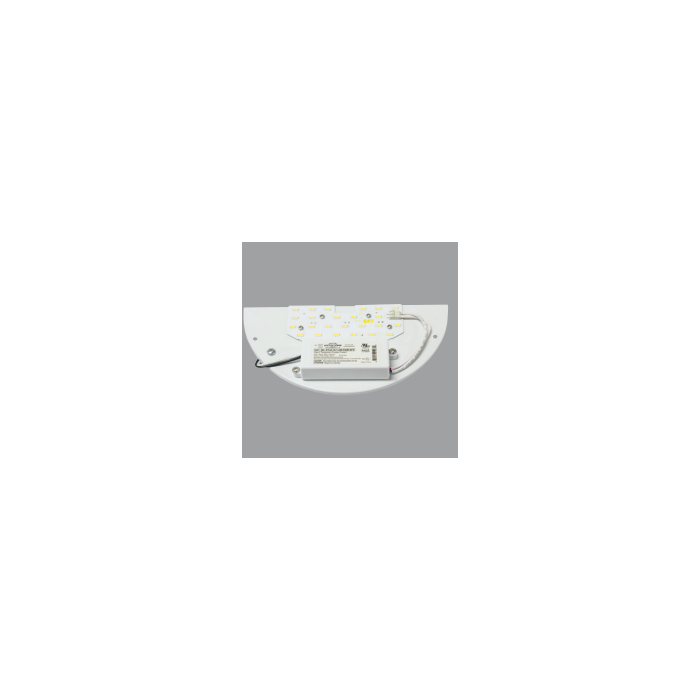

Keystone KT-RKIT-HCP-8-650-840-FDIM 7W Wall Sconce LED Retrofit 4000K
- Keystone KT-RKIT-HCP-8-650-840-FDIM
- LED Wall Sconce Retrofit Plate 7W 4000K
Keystone KT-RKIT-HCP-8-650-840-FDIM 7W Wall Sconce LED Retrofit 4000K
Upgrade wall-mount fluorescent-style luminaires to an LED solution. Designed for after-market or OEM installation (OEM must have UL LED Luminaire General Coverage file). Highly reflective white soldermask. Low profile WAGO push connectors. UL recognized components. Over Current, Short Circuit and Open Circuit Protection. Class 2 Output. Available in 650 lumens and 1150 lumens.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 5.5W |
| Lumens | 700 |
| Lumens Per Watt | 127 |
| Volts | 120 |
| Kelvin | 4000K |
| Color Temperature | 4000K |
| Dimmable | Forward Phase Control Dimming |
| Drive Current | 350mA |
| Driver Efficiency | 80% |
| Nominal Size | 8" |
| Length (M.O.L.) Inches | 7.87 |
| Width (Inches) | 3.94 |
| Height (Inches) | 0.8 |
| Rated Hours | 36,000 |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 194°F |
| Warranty | 5 Year |
| Manufacturer Part # | KT-RKIT-HCP-8-650-840-FDIM |
| Manufacturer Order # | N/A |
| Premier Part # | KT-RKIT-HCP-8-650-840-FDIM |
