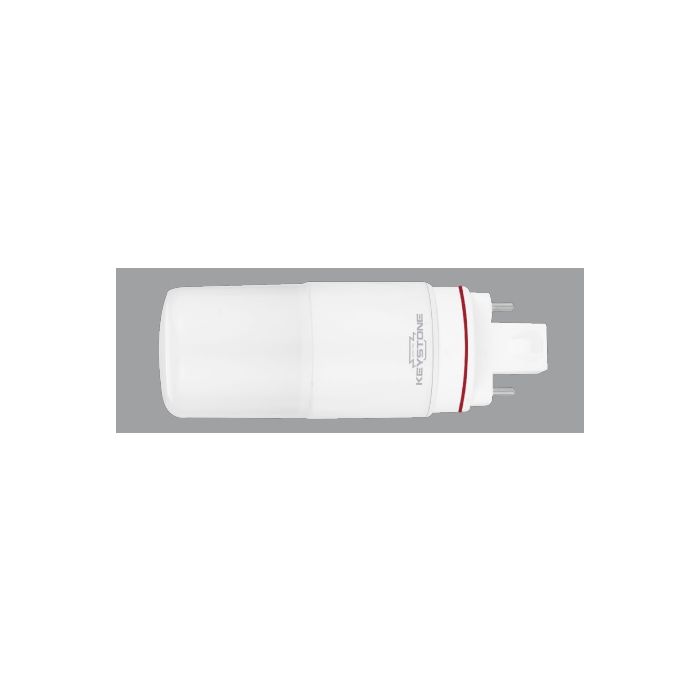

Keystone KT-LED82P-O-8xx-D 2-Pin Omni-directional LED PL Ballast Bypass
- Buy 25 for $11.25 each and save 17%
- Premier# LPLxxK8WG24DOD-K
- Keystone Type B 8W 2-pin Omni-Directional LED PL
Keystone KT-LED82P-O-8xx-D 2-Pin Omni-directional LED PL Ballast Bypass
Keystone's Direct Drive Type B LED PL lamps are designed with an internal driver allowing for bypassing costly CFL ballasts. Now in Omni-directional design for a wide 260 degree spread. These 8W 2-Pin LED PL lamps are designed to replace 18W+ CFL lamps with a G24d base. Simply cut the ballast out and connect the 120-277v line voltage directly to the sockets. No ballast or external LED is required. Omnidirectional design, also available in horizontal or vertical orientation. Ideal for totally enclosed fixtures (86 degrees fahrenheit max ambient temp). Available in 2700K, 3000K, 3500K, 4000K and 5000K color temperatures.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 8W |
| CFL Equivalent | 18W/26W |
| Lamp Type | Omnidirectional LED PL |
| Lumens | 800 |
| Lumens Per Watt | 100 |
| Volts | 120-277V |
| CRI | >80 |
| Color Temperature | 2700K-3000K-3500K-4000K-5000K |
| Dimmable | No |
| Base Type | G24d |
| Beam Angle | 260° |
| Orientation | Omnidirectional |
| Lens Type | Frosted |
| Length (M.O.L.) Inches | 4.52 |
| Width (Inches) | 1.50 |
| Height (Inches) | N/A |
| Rated Hours | 50,000 |
| DLC Listed | No |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 105°F |
| Minimum Starting Temp | -4°F |
| Certifications | UL |
| Case Quantity | 25 |
| Warranty | 5 Year |
| Manufacturer Part # | KT-LED82P-O-8xx-D |
| Manufacturer Order # | N/A |
| Premier Part # | LPLxxK8WG24DOD-K |
