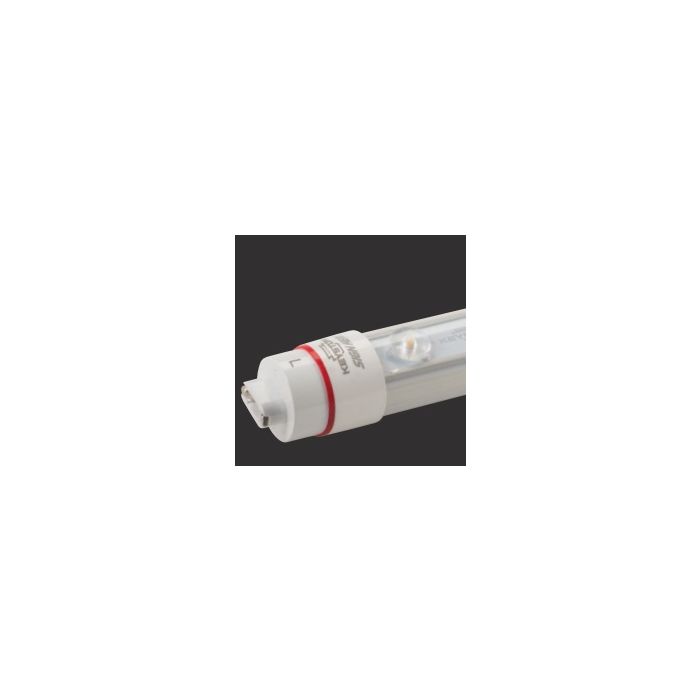

Keystone KT-LED16T8-72P1S-865-D /G2 16W 72" 180° LED SignHero 4000K 6500K
- Buy 9 for $55.75 each and save 9%
- Buy 16 for $52.13 each and save 14%
- Keystone KT-LED16T8-72P1S-865-D /G2 16W 180° 72" 4000K-6500K LED SignHero
Keystone KT-LED16T8-72P1S-865-D /G2 16W 72" 180° LED SignHero 4000K 6500K
Off the popularity of the original 360° Keystone SignHero lamp, Keystone has developed a 180° Single-Sided SignHero lamp for 1-sided signs. All of Keystone's Sign Hero LED Tubes come with the same R17d rotatable base and are installed in less than 5 minutes! See the video below to see how easy the process is. Unlike other LED solutions, they do not require the use of an external driver or ballast, which saves time on install and removes a future failure point. Rated for 50,000 hours and backed by a 5 year manufacturer warranty from Keystone. Installs using existing sockets in the sign; all necessary wiring can be done within the ballast raceway. Available in 4000K (Cool White) or 6500K (Daylight+) color temperatures. Listed in the UL Sam Manual. UL Classified: LED Sign Retrofit, Evaluated to UL 48 / UL 879A Standards. Operating Temperature of -22°F to 131°F. Available in several different lengths - 18", 24", 30", 36", 42", 48", 60", 64", 72", 84", 96", 108", 117" and 120". Retrofit your fluorescent signs today in 5 minutes and begin saving over 50% on energy with long lasting LED!
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 16W |
| Fluorescent Equivalent | 85W |
| Old LED Version | N/A |
| Lumens | 1920/2000 |
| Lumens Per Watt | 120/125 |
| Volts | 120-277V |
| CRI | >80 |
| Color Temperature | 4000K/6500K |
| Kelvin | 4000K/6500K |
| Dimmable | No |
| Base Type | R17d |
| Bulb Shape | T8 |
| Wiring | Double-Ended |
| Lens Type | Clear |
| Construction | Plastic |
| Nominal Size | 72" |
| Length (M.O.L.) Inches | 69.91 |
| Width (Inches) | 1.1 |
| Height (Inches) | N/A |
| Beam Angle | 180° |
| Light Emitting Area | 180° |
| Driver | Internal |
| Rated Hours | 50,000 |
| DLC Listed | No |
| Wet/Damp Rated | N/A |
| Maximum Temp | 131°F |
| Minimum Starting Temp | -22°F |
| Certifications | UL Sam |
| Case Quantity | 9 |
| Warranty | 5 Year |
| Manufacturer Part # | KT-LED16T8-72P1S-865-D /G2 |
| Manufacturer Order # | N/A |
| Premier Part # | KT-LED16T8-72P1S-865-D /G2 |
