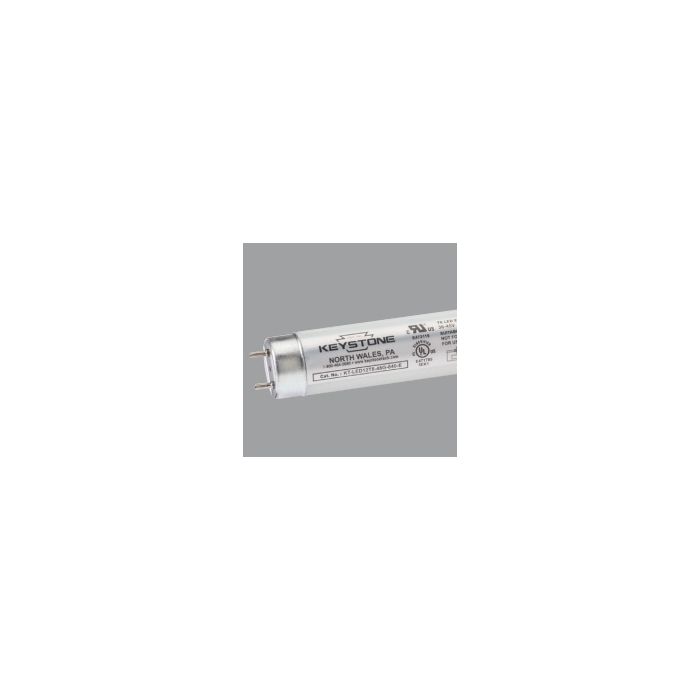

Keystone KT-LED15T5HO-36G-835-E External Drive 3' 15W LED T5HO 3500K
- Buy 25 for $16.00 each and save 18%
- Premier# LT53FT35K12W/C-K
- Keystone KT-LED15T5HO-36G-835-E
Keystone KT-LED15T5HO-36G-835-E External Drive 3' 15W LED T5HO 3500K
Keystone External Drive LED T5 lamps now available in 2' and 3' sizes - in both T5HO and T5HE! The benefits from using Type C LED T5 lamps are that they are very efficient and can provide crisp 0-10V dimming when paired with a 0-10V dimmer (sold separately). Available in 3500K, 4000K and 5000K color temps. Glass construction with metal end caps. Low optical flicker. Keystone tube and driver pairing wires either single-ended or double-ended. See wiring diagram in cut sheet below for details and common ballast retrofit configurations.
Brochures & Cut Sheets
Manufacturer | Keystone |
---|---|
Watts | 15.5W |
Fluorescent Equivalent | F39T5HO |
Old LED Version | N/A |
Lumens | 2050 |
Lumens Per Watt | 132 |
Volts | 36-45Vdc |
CRI | >82 |
Color Temperature | 3500K |
Dimmable | 0-10V |
Base Type | G5 Miniature Bi-Pin |
Wiring | Single/Double-ended |
Lens Type | Frosted |
Construction | Glass |
Length (M.O.L.) Inches | 33.49 |
Width (Inches) | 0.67 |
Height (Inches) | N/A |
Beam Angle | 160° |
Light Emitting Area | 325° |
Driver | External Driver |
Rated Hours | 50,000 |
DLC Listed | Yes |
Wet/Damp Rated | Damp Rated |
Maximum Temp | 113°F |
Minimum Starting Temp | -4°F |
Certifications | UL |
Case Quantity | 25 |
Warranty | 5 Year |
Manufacturer Part # | KT-LED15T5HO-36G-835-E |
Premier Part # | LT53FT35K12W/C-K |
