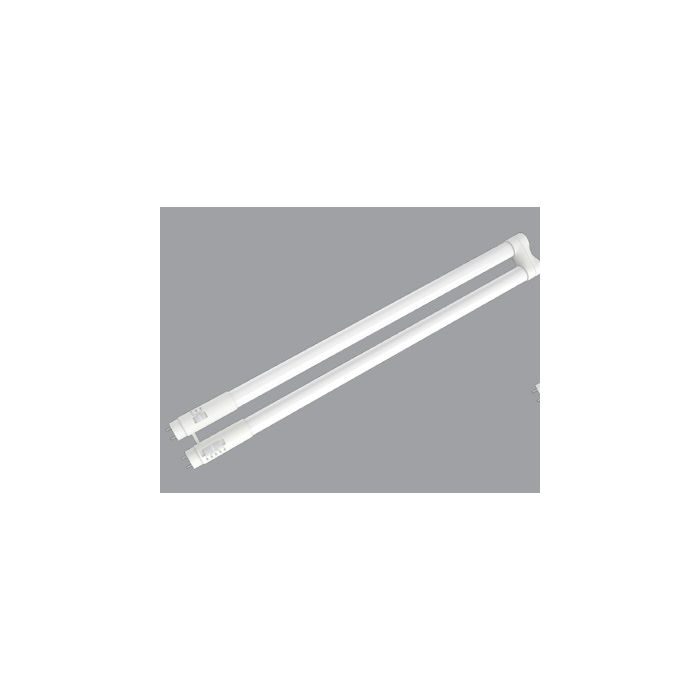

Keystone KT-LED15PST8-U1G-8CSJ-X3 1-5/8" LED Ubend Power/Color Select X3 ComboDrive

Keystone KT-LED15PST8-U1G-8CSJ-X3 1-5/8" LED Ubend Power/Color Select X3 ComboDrive

Keystone has come up with a truly unique offering with their new ComboDrive LED T8 Ubend lamps! Sure we have seen LED Ubends already so what makes this special? For one it is color selectable, allowing you to choose between 3000K, 3500K, 4000K (default), 5000K and 6500K color temps to hit any color you would need when replacing fluorescents. It also features power selectability, so you can choose between 11.5W, 13W and 15W (default) outputs on the bulb itself, allowing the end user even more control in the field. Maybe the best part is the X3 install method, meaning these can be installed while running on an existing ballast, or they can be installed via bypassing the ballast. In a ballast bypass install, they can be re-wired either with single-end or double-end wiring. This is a boon as with the double-end wiring install method now an option, replacing a costly LED Ubend socket is not needed. All the install options are on the table so you can do what makes sense for your application. Comes in both Ubend types, 6" leg spacing and 1-5/8" leg spacing. This one is the 1-5/8 inch skinny Ubend. Glass construction for a wide beam spread. G13 base. DLC rated.

Brochures & Cut Sheets

Keystone Type AB Ubend Info Sheet
