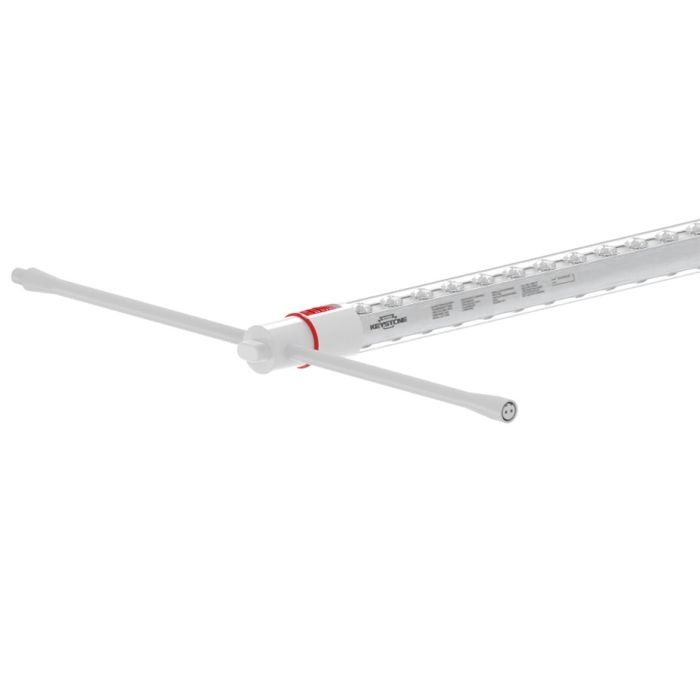

Keystone KT-LED10PST8-18P2SO-8CSK-DW 5W/8W/10W 18" 360° Clear 4K/5K/65K LED SignHero

Keystone KT-LED10PST8-18P2SO-8CSK-DW 18" Clear 360° Selectable LED SignHero

The best LED sign lamp got even better! The new Keystone SignHero is color and power-selectable, giving the user even more options for changing the light levels and color in the field. Select between 4000K, 5000K or 6500K for the color temps. Power-selectable between 5W, 8W, and 10W for hitting lumen levels between 620-1035 lumens. These lamps have rotatable R17d high output ends which is the same base as a fluorescent T8HO or T12HO lamp. 360° double-sided. These lamps bypass the ballast and make a direct wire connection. Rated for 50,000 hours and backed by a 5 year manufacturer warranty from Keystone. Installs using existing sockets in the sign; all necessary wiring can be done within the ballast raceway. Listed in the UL Sam Manual. Operating Temperature of -22°F to 131°F. Available in all the different T8HO and T12HO sizes - 18", 24", 30", 36", 42", 48", 60", 64", 72", 84", 96", 108", 117" and 120". Note that when you see a part# like F18T8/HO, it is actually ~15.9" length, so be sure to verify your current fluorescent part# and length to verify.

Brochures & Cut Sheets

Keystone Power + Color Selectable SignHero Spec Sheet
