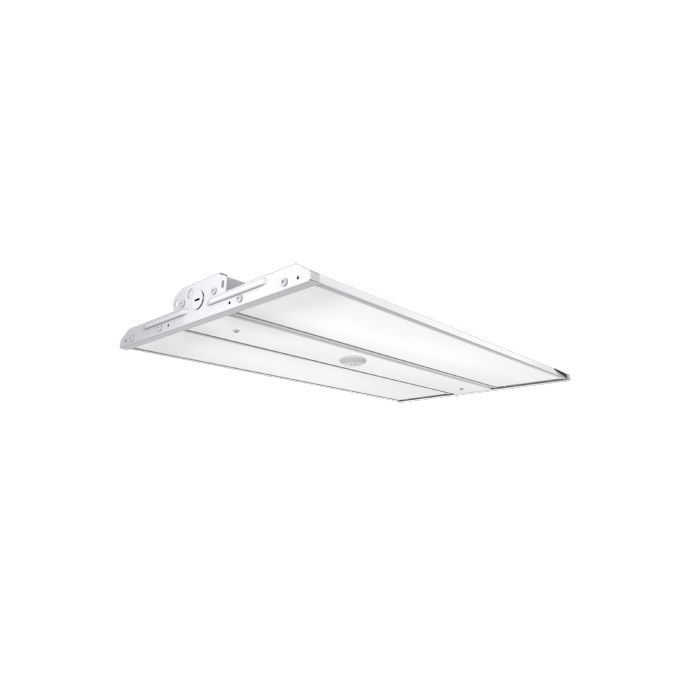

Keystone KT-HBLED105PS-2FB-8CSD-VDIM-P 2' LED Highbay 105W Color/Power Select

  • Buy 4 for $126.95 each and save 5%
  • Buy 10 for $114.95 each and save 14%
  • Buy 18 for $111.00 each and save 17%
  • Premier# LLHB2FTCCTPS115W-K - Keystone KT-HBLED105PS-2FB-8CSD-VDIM-P

Keystone KT-HBLED105PS-2FB-8CSD-VDIM-P 2' LED Highbay 105W Color/Power Select

Keystone's new linear LED highbay fixtures are packed with features and deliver the efficacy needed to acquire DLC premium rebates. They have a color-select and power-select model that allows the user to change between 4000K or 5000K color temps on the fixture itself, as well as a switch on the fixture for selecting three different lumen levels. Dedicated color/power options available as well for users that know exactly what wattage/color they need. All are powered by Keystone 0-10V Dimming LED Drivers. V-hook & Chain Mounting Accessories included; other mounting options available including surface mount, pendant mount and aircraft hangers. Smooth diffused lens for an even spread of light. Compatible with Keystone SmartSafe emergency LED backup drivers. Also compatible with Keystone's 480V - 277V step down transformer. Built-in port to accept quick install of Keystone sensor - either KTS-MW3-12V-PKO & KTS-PIR3-12V-PKO (no rewiring needed). Architectural grade compact design. Suitable for dry and damp locations. Power factor > 0.95. SmartLoop compatible and available with various cord sets and other options. If interested check out the cut sheet below and request a quote with the options you need.


Brochures & Cut Sheets

Keystone color/power-select 2' LED High Bay Fixture Keystone 2' Color/Power-Select LED Highbay Spec Sheet

More Information
Manufacturer Keystone
Volts 120-277V
HID Equivalent 150W-250W
Fluorescent Equivalent N/A
Watts 65W/90W/105W
Lumens 10,100-15,300
Lumens Per Watt 145-157
CRI >80
Color Temperature 4000K/5000K
Kelvin 4000K/5000K
Dimmable 0-10V
Distribution N/A
Finish White
Nominal Size 24"
Length (M.O.L.) Inches 24.80
Height (Inches) N/A
Width (Inches) 11.81
Wet/Damp Rated Damp Rated
Maximum Temp 122ºF
DLC Version DLC Premium
Rated Hours 50,000
Warranty 5 Year
Manufacturer Part # N/A
Manufacturer Order # KT-HBLED105PS-2FB-8CSD-VDIM-P
Premier Part # LLHB2FTCCTPS115W-K
Write your content here...
Back to Top

Keystone KT-HBLED105PS-2FB-8CSD-VDIM-P 2' LED Highbay 105W CCT Select

$132.95
