Keystone KT-EMRG-LED-12C-1200-IP - 12W Constant Power LED Emergency Driver
- Buy 10 for $129.95 each and save 7%
- KT-EMRG-LED-12C-1200-IP
- 12W Constant Power LED Emergency Back-up Driver - 1/Ea

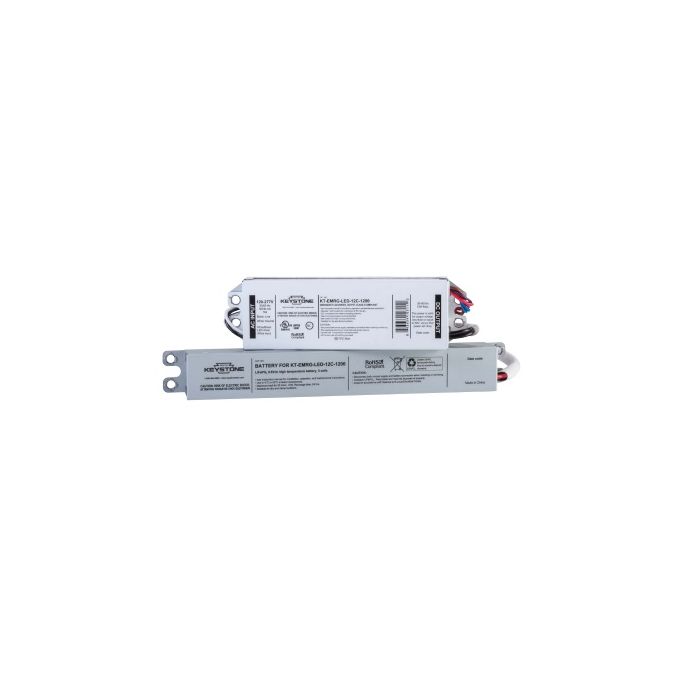

KT-EMRG-LED-12C-1200-IP - Constant Wattage LED Emergency Back-up
The Keystone KT-EMRG-LED-12C-1200 is a constant power emergency LED driver. This emergency backup driver can be used in many instances including by powering a Type B or Type C LED tube for 90 minutes during a power outage! This version is a 12W 1200 lumen version, there is also a lower watt version that is 5W 500 lumens. UL 924 safety standard. 120-277V. Also sometimes listed as KT-EMRG-LED-12C-1200-IP (IP standing for individually packaged).
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Volts | 120-277V |
| Input Current Max | 50mA @ 120V. 35mA @ 240V and 30mA @ 277V |
| Input Power Max | N/A |
| Input Frequency | 50/60Hz |
| Max. Current | N/A |
| Power Factor | >0.9 |
| THD Max | <20% under 120-277Vac |
| Output Current | 600mA @ 20Vdc, 206mA @ 58Vdc |
| Output Voltage | 20-60Vdc |
| Output Power | 12W (constant) |
| Efficiency | N/A |
| Case Style | N/A |
| Dimmable | N/A |
| Length (M.O.L.) Inches | 9.49 |
| Width (Inches) | 1.22 |
| Height (Inches) | 1.15 |
| Maximum Temp | 131°F |
| Minimum Starting Temp | N/A |
| Wet/Damp Rated | Damp Rated |
| Certifications | UL 924 |
| Warranty | 5 Year |
| Manufacturer Part # | KT-EMRG-LED-12C-1200-IP |
| Manufacturer Order # | KT-EMRG-LED-12C-1200-IP |
| Premier Part # | KT-EMRG-LED-12C-1200-IP |
