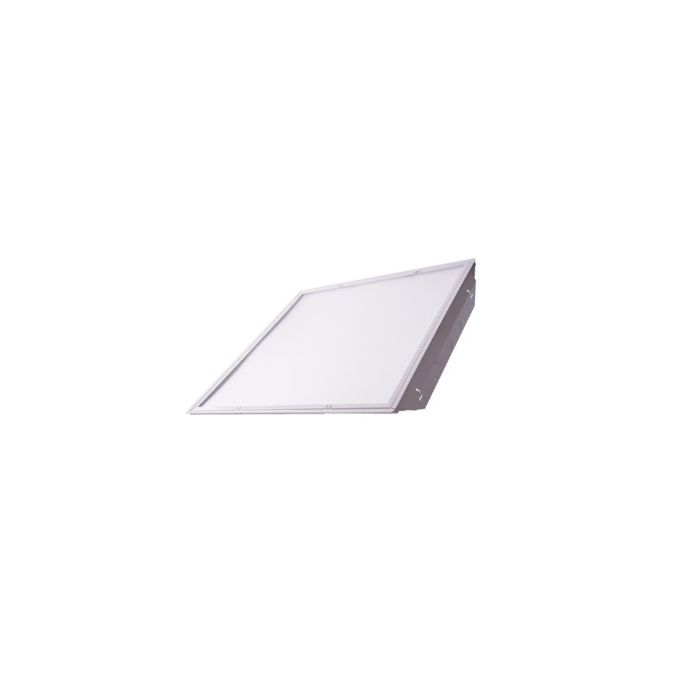

Keystone KT-DDPTLEDT8-22-2L 2x2 2-Lamp Type B Prismatic Troffer
- Buy 5 for $91.95 each and save 20%
- Buy 10 for $82.95 each and save 28%
- Premier# LPRISMTRF2X22XT8-K
- Keystone KT-DDPTLEDT8-22-2L
Keystone KT-DDPTLEDT8-22-2L 2x2 2-Lamp Type B Prismatic Troffer
Keystone's LED tube-ready fixtures are designed for Type B ballast bypass LED T8 lamps. Pre-wired for single-end wired LED tubes. 2x2 takes 2' LED T8 lamps up to 9W, 2x4 takes 4' LED T8 lamps up to 25W each. Prismatic Diffuser made of high quality PMMA. Post painted white steel body. Rated for damp locations. Note: In order for UL safety certification to be valid, only Keystone lamps may be installed in the fixture as per product label.
Brochures & Cut Sheets
Keystone Tube-ready 2x2 Prismatic Troffer Fixture Spec Sheet
| Manufacturer | Keystone |
|---|---|
| Volts | 120-277V |
| HID Equivalent | N/A |
| Fluorescent Equivalent | N/A |
| Watts | Max 18W |
| Lumens | Lamp dependent |
| Lumens Per Watt | Lamp dependent |
| CRI | Lamp dependent |
| Color Temperature | Lamp dependent |
| Dimmable | Lamp dependent |
| Distribution | Lamp dependent |
| Finish | White |
| Nominal Size | 2x2 |
| Length (M.O.L.) Inches | 23.88 |
| Height (Inches) | 3.13 |
| Width (Inches) | 23.75 |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | N/A |
| Rated Hours | N/A |
| Warranty | 5 Year |
| Manufacturer Order # | KT-DDPTLEDT8-22-2L |
| Premier Part # | LPRISMTRF2X22XT8-K |
