Keystone KT-DDHBLEDT8-4-4L Type B LED T8 Ready Highbay
- Premier# LHBAY4FT4XT8-K
- Keystone KT-DDHBLEDT8-4-4L

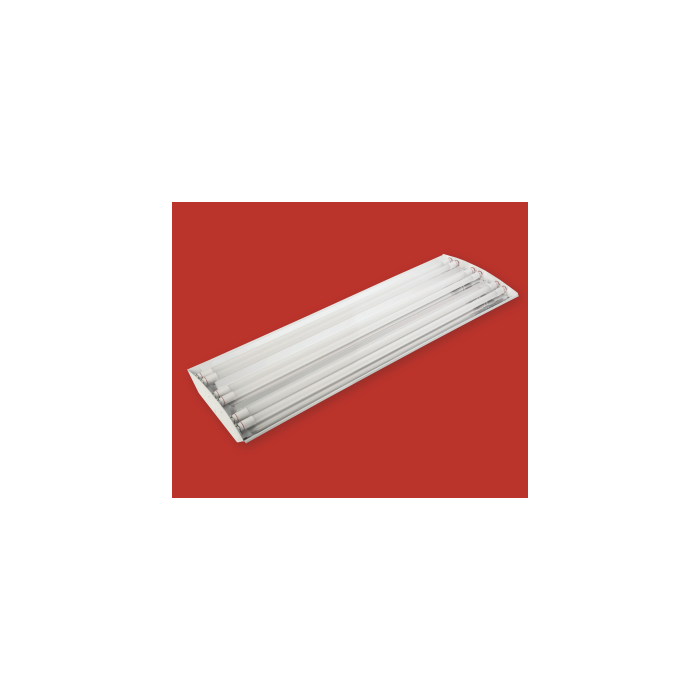

Keystone KT-DDHBLEDT8-4-4L - Direct Wire LED Ready Highbay Fixture
Keystone's LED highbay fixtures come equipped with non-shunted sockets and are ready for direct wire LED T8 lamps. Used for indoor highbay, warehouse and general lighting applications. Post-painted white steel body. Mirror reflector to capture and direct light downwards. Available in 4-lamp and 6-lamp configuration. Best suited with Keystone's 18.5W 5000K 2600 lumen lamps for maximum light output. Tubes not included. Must be ordered with tubes to be UL listed.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Volts | 120-277V |
| HID Equivalent | N/A |
| Fluorescent Equivalent | N/A |
| Watts | Max 88W |
| Lumens | Lamp dependent |
| Lumens Per Watt | Lamp dependent |
| CRI | Lamp dependent |
| Color Temperature | Lamp dependent |
| Dimmable | Lamp dependent |
| Distribution | Lamp dependent |
| Finish | Post Painted White Steel |
| Nominal Size | 48" |
| Length (M.O.L.) Inches | 48 |
| Height (Inches) | 3.620 |
| Width (Inches) | 11.385 |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | N/A |
| Rated Hours | N/A |
| Warranty | 5 Year |
| Manufacturer Part # | N/A |
| Manufacturer Order # | KT-DDHBLEDT8-4-4L |
| Premier Part # | LHBAY4FT4XT8-K |
