Keystone KT-BPLED50PS-24-8CSA-VDIM /G2 2x4 ColorSelect LED Backlit Panel
- Buy 8 for $65.90 each and save 1%
- Buy 24 for $61.95 each and save 7%
- Buy 30 for $61.25 each and save 8%
- Buy 40 for $60.20 each and save 9%
- Buy 50 for $58.95 each and save 11%
- Buy 60 for $58.10 each and save 13%
- Buy 70 for $55.20 each and save 17%
- Premier# LBLP2X4CCTPS50W-K - Keystone KT-BPLED50PS-24-8CSA-VDIM /G2

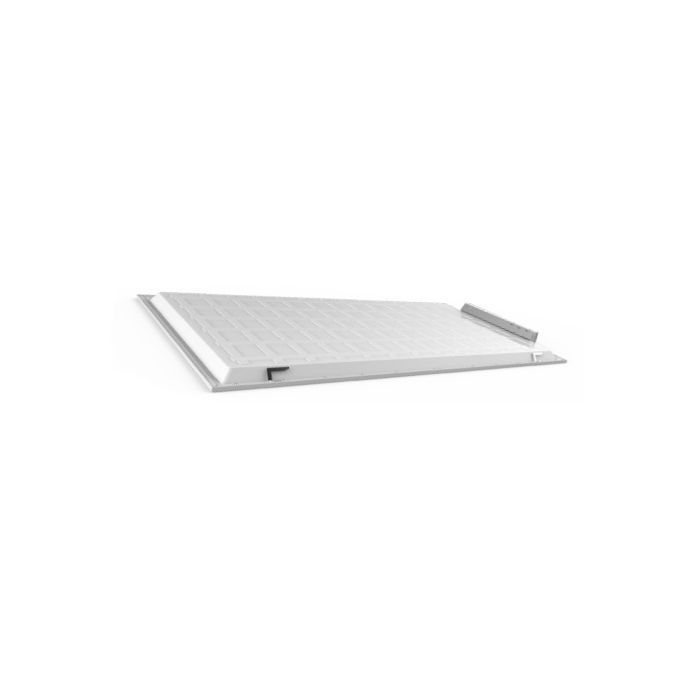

Keystone KT-BPLED50PS-24-8CSA-VDIM /G2 2x4 ColorSelect LED Backlit Panel
Keystone's Backlit LED Panel Lights are an easy-to-install LED fixture solution with myriad options for end users. Their thin, lightweight design features 4 knockouts to simplify install for retrofit or new construction. Frosted lens for evenly diffused light with no hot spots. Optical lenses covering each individual LED chip ensures there is no risk of yellowing over time. They have a color-selectable and power-selectable version for 1x4, 2x2, and 2x4 for superior versatility. This makes it so you can change between 3500K, 4000K or 5000K colors on the back of the fixture as well as changing the wattage from 20W to 30W or 40W on 2x2/1x4 fixtures, or 30W/40W/50W for the 2x4. Keystone also has backlit panels in fixed wattages and color temps, all of which are DLC rated and some are DLC Premium. All are powered by Keystone's 0-10V dimming LED drivers for crisp low voltage dimming with a 0-10V dimmer (sold separately).
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 30W/40W/50W |
| Fluorescent Equivalent | N/A |
| Lumens | 3850-6200 |
| Lumens Per Watt | 117-140 |
| Volts | 120-277V |
| Color Temperature | 3500K/4000K/5000K |
| Kelvin | 3000K/4000K/5000K |
| CRI | >80 |
| Beam Angle | Even |
| Dimmable | 0-10V |
| Power Factor | >0.9 |
| Lens Type | Frosted |
| Nominal Size | 2x4 |
| Length (M.O.L.) Inches | 47.71 |
| Width (Inches) | 23.74 |
| Height (Inches) | 1.37 |
| Rated Hours | 50,000 |
| DLC Version | DLC Standard |
| DLC Listed | Yes |
| Warranty | 5 Year |
| Manufacturer Part # | KT-BPLED50PS-24-8CSA-VDIM /G2 |
| Manufacturer Order # | N/A |
| Premier Part # | LBLP2X4CCTPS50W-K |
