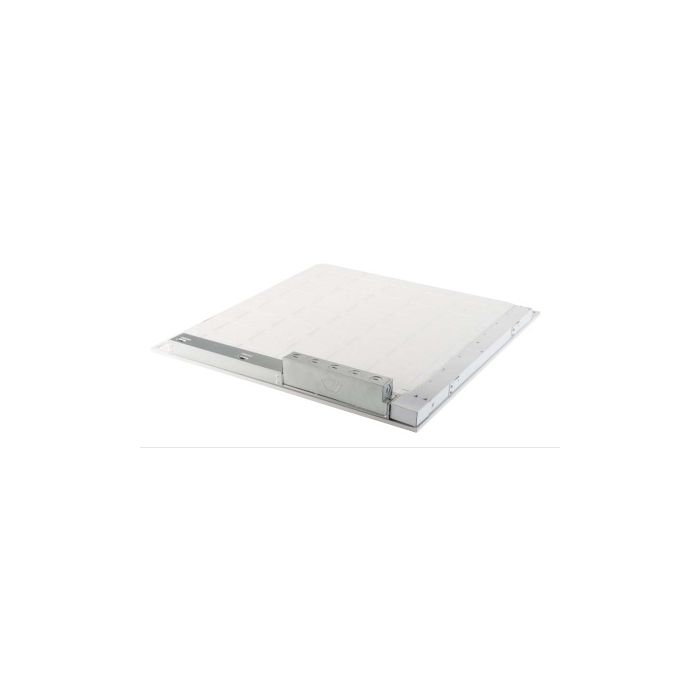

Keystone KT-BPLED35PS-22C-8CSA-VDIM-EM8 35W/30W/20W CCT Select LED Backlit Panel w/ Emergency Backup
- Buy 6 for $172.50 each and save 9%
- Premier# LBLP2X2CCT35WEM-K
Keystone KT-BPLED35PS-22C-8CSA-VDIM-EM8 - Color + Power Select LED Backlit Panel w/ Emergency Backup
Keystone has you covered when it comes to LED fixtures with emergency battery backup! Often times this means made-to-order with many vendors, but Keystone stocks hundreds of these 2x2 and 2x4 LED backlit panels that have emergency functionality built-in. The EM8 on the part number means it has an 8W 800 lumen emergency backup module that kicks in when a power outage occurs. This LED backlit panel still features the same great power and color select feature for choosing between 35W/30W/20W and 3500K, 4000K and 5000K color on the fixture itself. Operates on 120-277V and dims on 0-10V low voltage. If you need added controls, include the Keystone Bluetooth Mesh SmartLoop Sensor for added fixture-level control.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Volts | 120-277V |
| HID Equivalent | N/A |
| Fluorescent Equivalent | 64W |
| Watts | 35W/30W/20W |
| Lumens | 2400-4200 |
| Lumens Per Watt | 113-130 |
| CRI | 80+ |
| Color Temperature | 3500K/4000K/5000K |
| Kelvin | 3500K/4000K/5000K |
| Dimmable | 0-10V |
| Distribution | Uniform |
| Finish | White |
| Nominal Size | 2x2 |
| Length (M.O.L.) Inches | 23.74 |
| Height (Inches) | 23.74 |
| Width (Inches) | 1.47 |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 104ºF |
| DLC Version | DLC Standard |
| Rated Hours | 100,000 |
| Warranty | 5 Year |
| Manufacturer Part # | N/A |
| Manufacturer Order # | KT-BPLED35PS-22C-8CSA-VDIM-EM8 |
| Premier Part # | LBLP2X2CCT35WEM-K |
