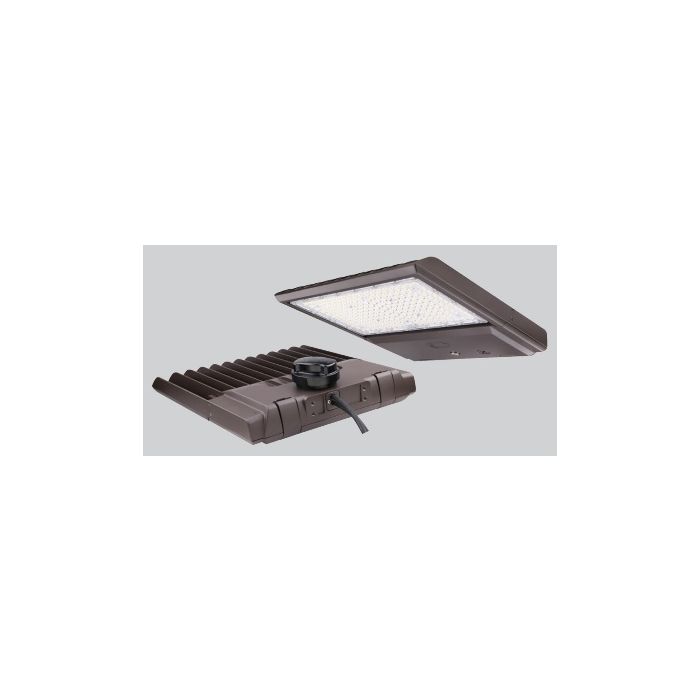

Keystone KT-ALED140-M1-3-NM-850-VDIM 140W LED Area Light 5000K 400W Equiv Type III
- Buy 4 for $224.95 each and save 10%
- Premier# LALM150K140WT3-K
- Keystone KT-ALED140-M1-3-NM-850-VDIM 140W LED Area Light 5000K 400W Equiv
Keystone KT-ALED140-M1-3-NM-850-VDIM 140W LED Area Light 5000K 400W Equiv Type III
Keystone's XFIT LED Area Lights meet all the needs for any outdoor pole application. Available in small, medium and large housing for replacing anywhere from 175W HID, 250W HID or 320W HID all the way up to the more common 400W HID fixtures or 750W and 1000W HIDs. High efficacy of 136-142 lumens per watt. Available in 120-277V standard with 480V options as well for the higher wattage replacements which are more likely to be high voltage. Includes 3-pin receptable and shorting cap and 10kV external surge protection. Mounting options include fixed pole mount kit, adjustable pole mount kit, slipfitter mounting kit or trunnion mount kit (all mounting options sold separately). Various pole mounting accessories available direct from Keystone. 0-10V dimming standard. Each wattage and voltage available in 4000K or 5000K, as well as Type III or Type V distribution. Bronze housing. ALED fixtures are rated for 50,000 hours with a 5 year manufacturer warranty. DLC rated.
Brochures & Cut Sheets
Manufacturer | Keystone |
---|---|
Volts | 120-277V |
HID Equivalent | 400W |
Fluorescent Equivalent | N/A |
Watts | 140W |
Lumens | 19,600 |
Lumens Per Watt | 140 |
CRI | >80 |
Color Temperature | 5000K |
Dimmable | 0-10V |
Distribution | Type III |
Finish | Bronze |
Length (M.O.L.) Inches | 14.21 |
Height (Inches) | 2.76 |
Width (Inches) | 13.11 |
Wet/Damp Rated | IP65 Wet Rated |
Maximum Temp | 122ºF |
Rated Hours | 50,000 |
Warranty | 5 Year |
Manufacturer Part # | N/A |
Manufacturer Order # | KT-ALED140-M1-3-NM-850-VDIM |
Premier Part # | LALM150K140WT3-K |
