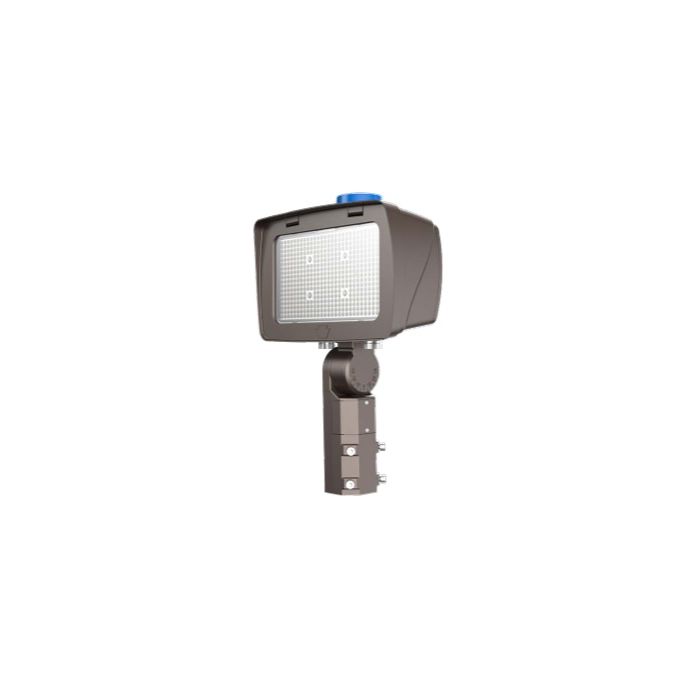

Keystone KT-FLED140PSHV-R4-OSF-UNV-8CSB-VDIM 140W CCT Power Select Optic Swap 277-480V LED Flood

Keystone KT-FLED140PSHV-R4-OSF-UNV-8CSB-VDIM 140W CCT Select 480V LED Flood

Keystone's new high-powered LED floodlights give you the punch you need to replace high output HID sources! Available with the color-select/power-select technology that allows you to choose color temp 3000K/4000K/5000K or lumen level on the fixture itself. This 140W max version delivers up to 21,000 lumens with a 160 lumens per watt rating! This version is also 277V-480V for replacing high voltage HID. Universal mounting solutions included with 2 3/8" slip fitter and trunnion mounts for these larger floodlights. Optic swap enabled for changing the spread of the fixture. Maximum efficiency with a built-in dusk-to-dawn photocell. Additional energy savings can be reaped with 0-10V dimming coming standard with a Keystone dimmable driver powering the fixture. Protected from the elements and sprinkler systems thanks to it's IP65 rating. Two housing color options - bronze or white. Heavy-duty die cast aluminum housing. Can be used either building-mounted or ground-mounted for outdoor illumination at parking areas, pathways, loading docks, display signage or any other general site lighting application. Rated for 100,000 hours and comes with a 10-year Keystone warranty.

Brochures & Cut Sheets

Keystone Color-Select 140W 480V LED Floodlight Spec Sheet
