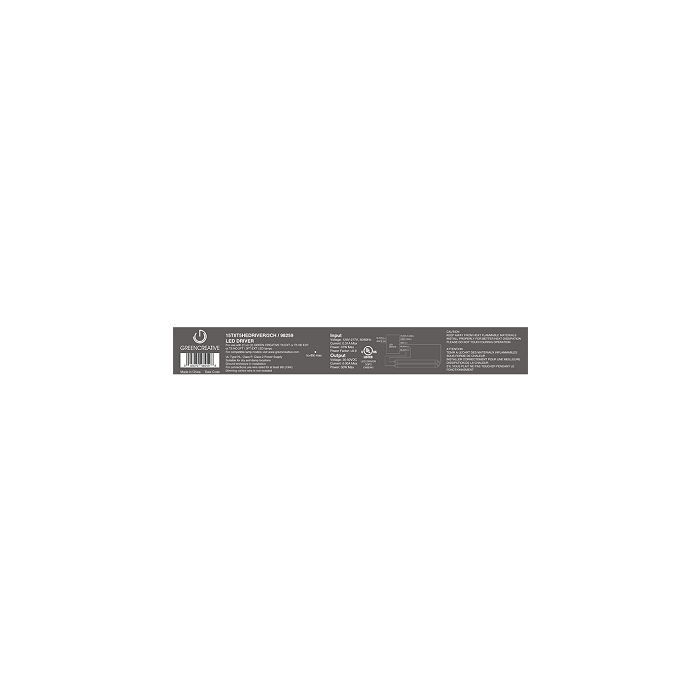

Green Creative 98259 15T8T5HEDRIVER/2CH/R 2-Lamp EXTernal LED Driver Case/6

  • Buy 2 for $131.80 each and save 9%
  • Buy 4 for $121.95 each and save 16%
  • Buy 8 for $111.95 each and save 23%
  • Green Creative 98259 15T8T5HEDRIVER/2CH/R - Case/6

Green Creative 98259 15T8T5HEDRIVER/2CH/R 2-Lamp EXTernal LED Driver Case/6

Green Creative's EXTernal LED drivers power their Type C LED T8 and T5 lamps and allow for 0-10V dimming (dimmer not included). Superior system efficiency at 158 lumens per watt along with crisp, flicker-free lighting. EXTernal drive Type C systems operate with either shunted or non-shunted sockets. This particular version is a 2-lamp LED driver that can power 1-2 Green Creative EXTernal Drive LED T8/T5 lamps.


Brochures & Cut Sheets

Green Creative EXTernal LED Lamps & driver Green Creative EXTernal LED Tube Info Sheet

More Information
Manufacturer Green Creative
Volts 120-277V
Input Current Max N/A
Input Power Max N/A
Input Frequency 50/60Hz
Max. Current 0.31
Power Factor >0.9
THD Max <20%
Output Current 0.3 * 2
Output Voltage 30-48VDC
Output Power N/A
Efficiency >.9%
Case Style N/A
Dimmable 0-10V
Length (M.O.L.) Inches 9.5
Width (Inches) 1.31
Height (Inches) 1.19
Maximum Temp 194°F
Minimum Starting Temp -20°F
Wet/Damp Rated Damp Rated
Certifications UL
Warranty 5 Year
Manufacturer Part # 15T8T5HEDRIVER/2CH/R
Manufacturer Order # 98259
Premier Part # 98259
