GE 63126 LED36T8/DR/D2L Lightech Dimming Driver 2-Lamp - Case/10

  • Buy 4 for $559.95 each and save 11%
  • GE 63126 LED36T8/DR/D2L

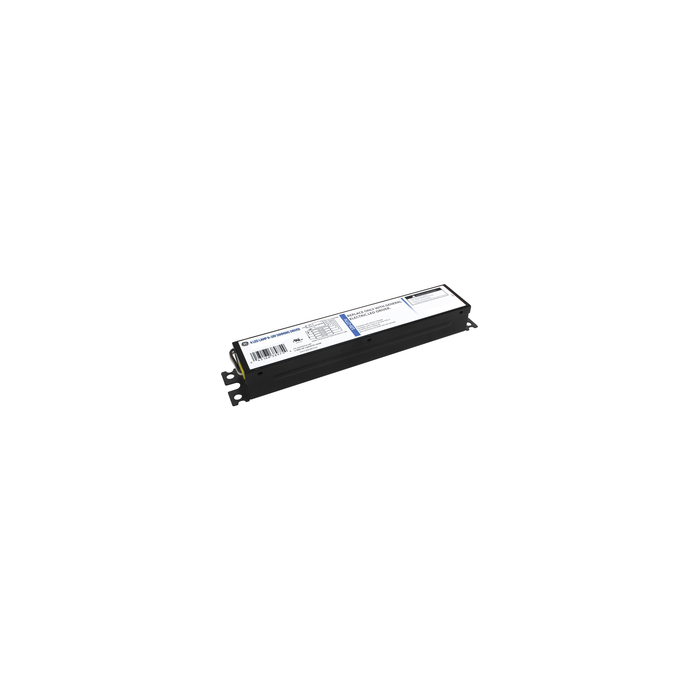

GE 63126 LED36T8/DR/D2L Lightech Dimming Driver 8' LED T8 or 4' LED T5 2-lamp

GE Lightech External Dimming Driver for GE 4' Type C LED T5 lamps or GE 8' Type C LED T8 lamps. GE 63126 operates two 8' LED T8 or 4' LED T5 lamps and is capable of functioning with a 0-10V dimmer to allow for dimming.


Brochures & Cut Sheets

GE Type C LED T5 Lamps GE Type C LED T5 Info Sheet

More Information
Volts 120-277V
Input Current Max 0.42A @ 120V
Input Power Max 72
Input Frequency 50/60Hz
Max. Current N/A
Power Factor >0.9
THD Max N/A
Output Current 1.06*2
Output Voltage 27-33V
Output Power N/A
Efficiency >.9%
Case Style N/A
Dimmable 0-10V
Length (M.O.L.) Inches 9.5
Width (Inches) 1.7
Height (Inches) 1.25
Maximum Temp 104°F
Minimum Starting Temp -4°F
Wet/Damp Rated Damp Rated
Certifications UL
Warranty 5 Year
Manufacturer Part # LED36T8/DR/D2L
Manufacturer Order # 63126
Premier Part # NLED0786
