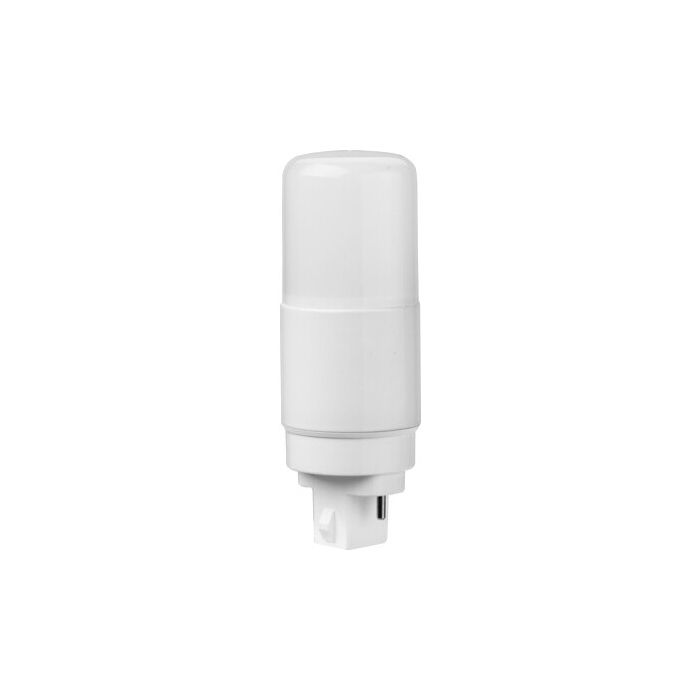

Eiko 10180 LED5W2P/G23/840DM-G7B 5W 2-Pin G23 Uses/Bypasses Ballast
Eiko has a new series of LED PL lamps that can use the existing magnetic ballasts or bypass them and wire direct to line voltage. At 50,000 hours lifespan, these last up to 5x longer than fluorescent pl lamps. Rotatable base. 5W is G23 base (4.13" length bulb) and 7W is GX23 base (4.78" length bulb). Non-dimmable. Shatter-resistant and instant-on. 5 Year limited warranty. Check ballast compatibility sheet below if you intend to re-use existing ballast!.
Brochures & Cut Sheets
| Manufacturer | Eiko |
|---|---|
| Watts | 5W |
| CFL Equivalent | 7W-13W |
| Lamp Type | 2-Pin LED PL |
| Lumens | 500 |
| Lumens Per Watt | 100 |
| Volts | 120-277V |
| CRI | 80+ |
| Color Temperature | 4000K |
| Kelvin | 4000K |
| Dimmable | No |
| Base Type | G23 |
| Bulb Shape | PL |
| Beam Angle | 260° |
| Orientation | Universal |
| Lens Type | Frosted |
| Length (M.O.L.) Inches | 4.13 |
| Width (Inches) | 1.46 |
| Height (Inches) | N/A |
| Rated Hours | 50,000 |
| DLC Listed | No |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 104°F |
| Minimum Starting Temp | -4°F |
| Certifications | UL |
| Case Quantity | 50 |
| Warranty | 5 Year |
| Manufacturer Part # | LED5W2P/G23/840DM-G7B |
| Manufacturer Order # | 10180 |
| Premier Part # | LPL40K5WCOMBO-E |
