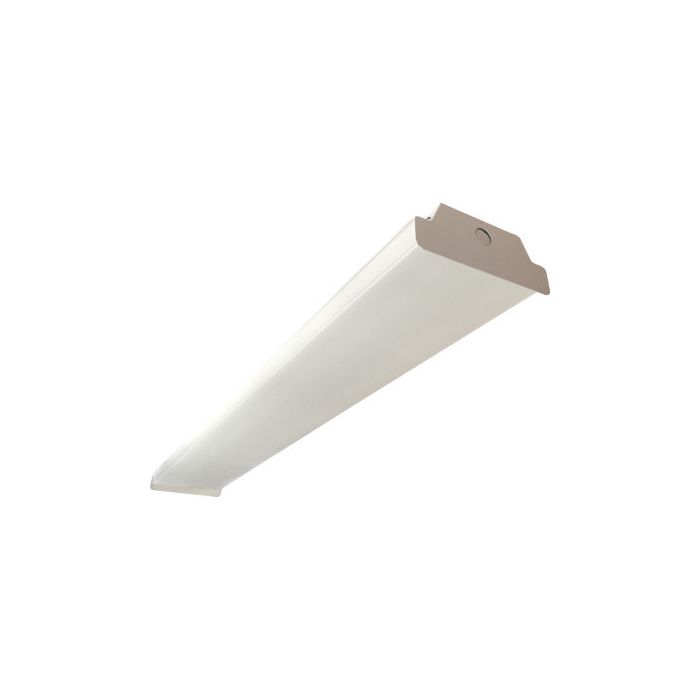

Eiko 09705 LLW-5CP-40K-U 4' LED Linear Wrap Fixture 40W 5200lm DLC 4.1
- Eiko 09705 LLW-5CP-40K
Eiko 09705 LLW-5CP-40K-U 4' LED Linear Wrap Fixture 40W 5200lm DLC Premium
High efficacy LED Linear Wrap Fixture from Eiko. This utility wrap fixture features a full length wrap-around U-shaped prismatic acrylic lens. All-internal LED fixture - no LED tubes needed! UL Damp listed and 0-10V dimming comes standard. Availability in 4000K and 34W 4420 lumens or 40W 5200 lumens. L70 of 50,000 hours with 5 year limited manufacturer warranty.
Brochures & Cut Sheets
| Manufacturer | Eiko |
|---|---|
| Volts | 120-277V |
| HID Equivalent | N/A |
| Fluorescent Equivalent | 80W |
| Watts | 40W |
| Lumens | 5200 |
| Lumens Per Watt | 130 |
| CRI | 80+ |
| Color Temperature | 4000K |
| Kelvin | 4000K |
| Dimmable | 0-10V |
| Distribution | N/A |
| Finish | White |
| Nominal Size | 48" |
| Length (M.O.L.) Inches | 47.7 |
| Height (Inches) | 2.8 |
| Width (Inches) | 7.1 |
| Wet/Damp Rated | Damp |
| Maximum Temp | 122ºF |
| Rated Hours | 50,000 |
| Warranty | 5 Year |
| Manufacturer Part # | N/A |
| Manufacturer Order # | 09705 |
| Premier Part # | LLW-5CP-40K |
