AcuityControls Sensor Switch MP20 Mini PowerPack 20A

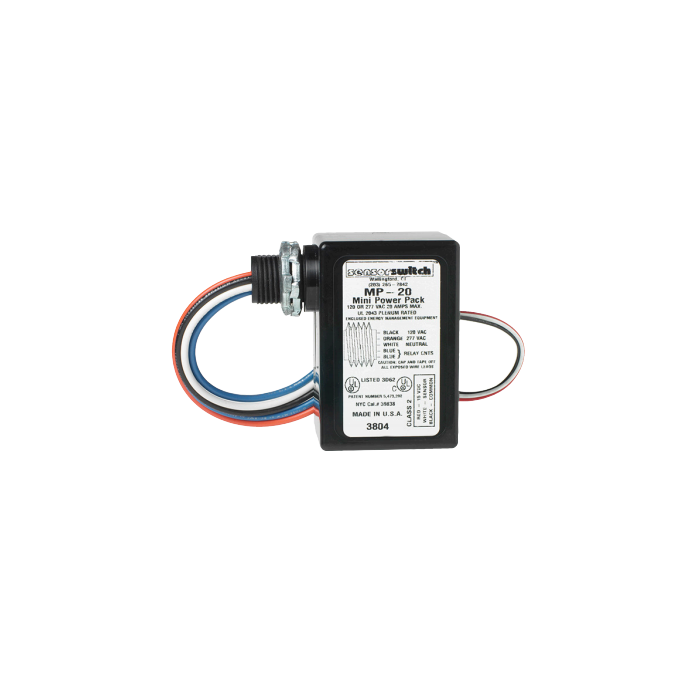

Sensor Switch MP20 - Mini Power Pack

The MP20 power/relay pack works with low voltage occupancy sensors to switch lighting loads on and off. The MP20 also transforms 120, 240, and 277 VAC single phase power to Class 2 15 VDC to power remote sensors. Although plenum rated, the elongated mounting nipple allows for these packs to be mounted either directly through a 1/2 inch knockout in a junction box, or to be located inside an adjacent box for specific local code requirements. Up to 14 sensors may be connected to one MP20. MP20s can be wired continuously hot (line side) or on the switch leg (load side) without nuisance delays upon turn on.

Brochures & Cut Sheets

Sensor Switch MP20 Spec Sheet
