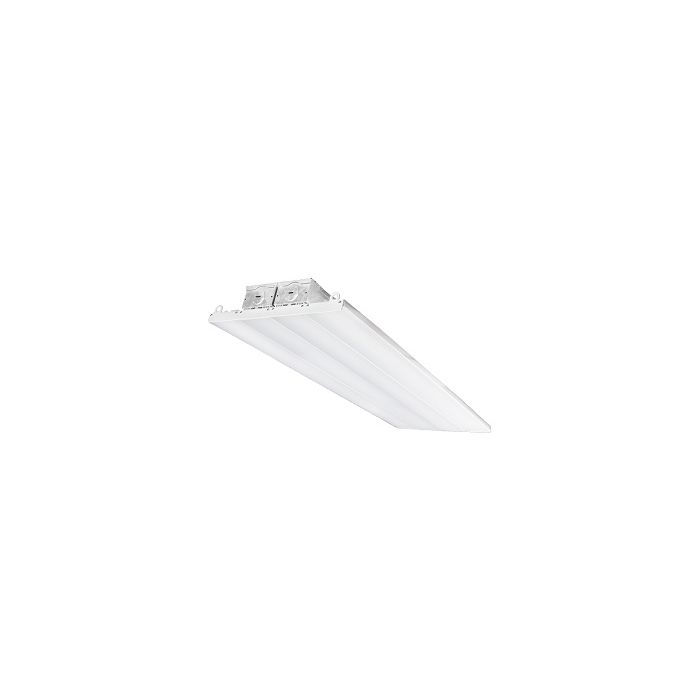

TCP QHB2HZDA250K Q-Series 2' LED Linear Highbay 110W 5000K 347-480V
- Buy 10 for $149.95 each and save 13%
- Buy 30 for $134.95 each and save 22%
- Premier# LLHB2FT50K110W/480-T - TCP QHB2HZDA250K Q-Series 2' LED Linear Highbay 110W 5000K 347-480V
TCP QHB2HZDA250K Q-Series 2' LED Linear Highbay 110W 5000K 347-480V 250W Equiv
TCP's Q Series LED Highbays are great value with a ton of sensor options as well as emergency backup as an option. This version is a 347-480V option to meet the high voltage needs often seen in highbay environments. Designed with a standard frosted lens for glare control; no shadows just smooth, even lighting. Lightweight design for an easy install. The QHB2 is available in 110W (15,100 lumens), 130W (17,550 lumens), 165W (25,100 lumens), 220W (30,500 lumens) and 260W (35,000 lumens), allowing this fixture to replace anywhere from 250W HID fixtures up to 400W+ highbays. Damp location rated and comes with 0-10V smooth no flicker dimming capability. Wide 160 Degree beam spread reduces cave effect. Includes 2 Tong Hangers, 5' Jack Chains, and 6-Foot Pre-wired Cord.
Brochures & Cut Sheets
| Manufacturer | TCP |
|---|---|
| Volts | 347-480V |
| HID Equivalent | 250W |
| Fluorescent Equivalent | N/A |
| Watts | 110W |
| Lumens | 14,850 |
| Lumens Per Watt | 135 |
| CRI | N/A |
| Color Temperature | 5000K |
| Kelvin | 5000K |
| Dimmable | 0-10V |
| Distribution | Wide |
| Finish | N/A |
| Nominal Size | 24" |
| Length (M.O.L.) Inches | 23.8 |
| Height (Inches) | 2.6 |
| Width (Inches) | 6.8 |
| Wet/Damp Rated | Damp rated |
| Maximum Temp | 122ºF |
| DLC Version | DLC Standard |
| Rated Hours | 50,000 |
| Warranty | 5 Year |
| Manufacturer Part # | QHB2HZDA250K |
| Manufacturer Order # | QHB2HZDA250K |
| Premier Part # | LLHB2FT50K110W/480-T |
