Keystone KT-RKIT24PS-22DB-8CSA-VDIM /FC2 2x2 LED DoorFrame Retrofit 24W CCT/Power Select SmartLoop Controller
- Buy 6 for $109.95 each and save 12%
- Buy 20 for $93.95 each and save 25%
- Premier# LRK2X2CCTPS24W/SL-K
- Keystone KT-RKIT24PS-22DB-8CSA-VDIM /FC2

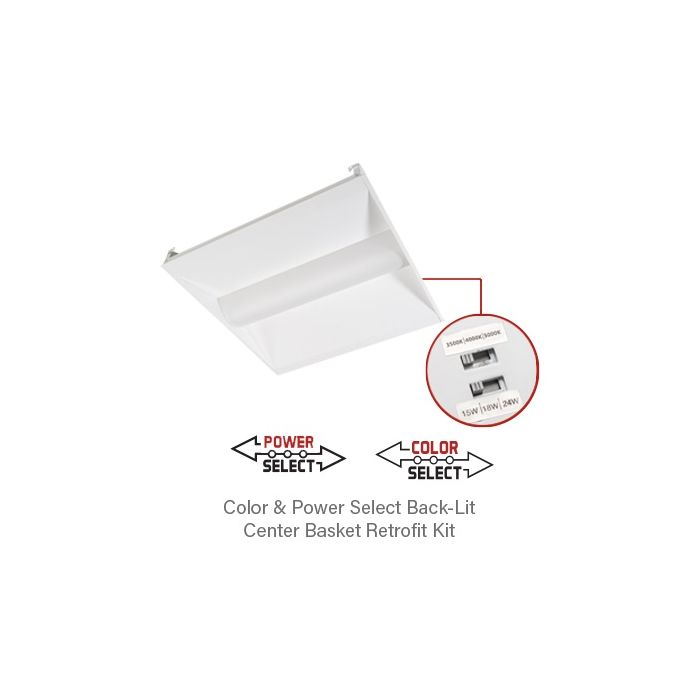

Keystone KT-RKIT24PS-22DB-8CSA-VDIM /FC2 2x2 LED DoorFrame Retrofit Kit 24W CCT Select
Keystone's awesome centerbasket troffer retrofit kits just got even better! Now featuring Color-Select and Power-Select technology, allowing you to choose between three different wattage levels and 3500K/4000K/5000K with two switches on the back of the kit. These retrofit kits are designed for a quick install in existing 1x4, 2x4 and 2x2 fluorescent recessed troffers without modifying existing fixture mounting. This particular version with part number ending in FC2 comes equipped with a SmartLoop Controller factory-installed for getting the retrofit set up on Keystone's SmartLoop Wirelessly controlled system. The SmartLoop system is a wireless/bluetooth mesh lighting control app that can be controlled on an Android or iPhone. Powered by Keystone's integrated 0-10V dimmable LED driver. Suitable for damp locations. Rated for 50,000 hours with a 5 year manufacturer warranty. Compatible with Keystone SmartSafe Emergency backup drivers. DLC listed.
Brochures & Cut Sheets
Keystone CCT/Power Select LED DoorFrame Retrofit Kit Spec Sheet
Manufacturer | Keystone |
---|---|
Volts | 120-277V |
HID Equivalent | N/A |
Fluorescent Equivalent | 48W |
Watts | 24W/18W/15W |
Lumens | 2010-3048 |
Lumens Per Watt | 125-136 |
CRI | 80+ |
Color Temperature | 3500K/4000K/5000K |
Kelvin | 3500K-5000K |
Dimmable | 0-10V |
Distribution | N/A |
Finish | White |
Nominal Size | 2x2 |
Length (M.O.L.) Inches | 23.8 |
Height (Inches) | 23.8 |
Width (Inches) | 3.09 |
Wet/Damp Rated | Damp |
Maximum Temp | 50ºC |
DLC Version | DLC Standard |
Rated Hours | 50,000 |
Warranty | 5 Year |
Manufacturer Part # | N/A |
Manufacturer Order # | KT-RKIT24PS-22DB-8CSA-VDIM /FC2 |
Premier Part # | LRK2X2CCTPS24W/SL-K |
