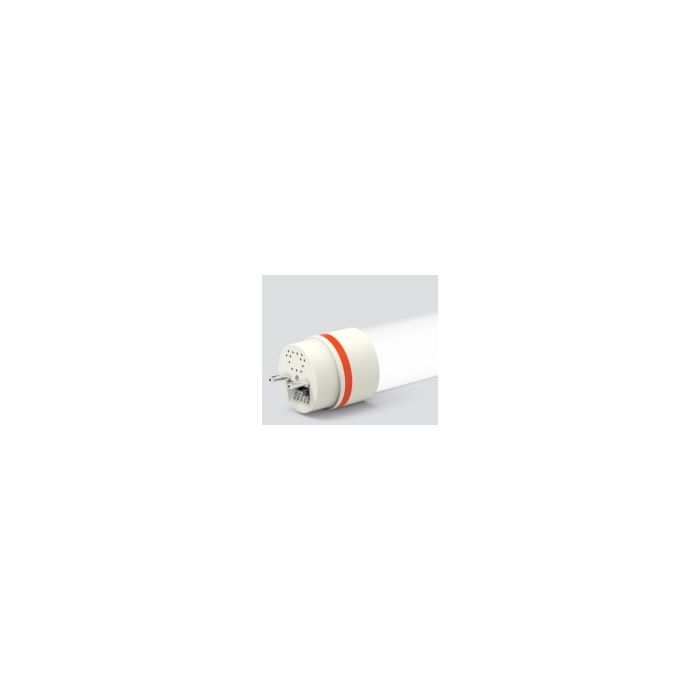

Keystone KT-LED7.5T8-24G-8CSJ-X3 2' 7.5W ColorSelect ComboDrive LED T8 3000K-6500K
- Buy 25 for $9.75 each and save 25%
- Buy 50 for $9.25 each and save 29%
- Buy 100 for $8.75 each and save 32%
- Buy 200 for $8.25 each and save 36%
- Premier# LT82FTCCT7.5WCOMBO-K
- Keystone KT-LED7.5T8-24G-8CSJ-X3 2' 7.5W ColorSelect LED T8 3000K-6500K
Keystone KT-LED7.5T8-24G-8CSJ-X3 2' 7.5W ColorSelect LED T8 3000K-6500K
Truly the most versatile commercial-grade LED T8 out there! The Keystone ColorSelect ComboDrive LED T8 can be used with the existing ballast (if compatible) or can bypass the ballast and wire direct. This type of lamp is considered a Type D or Type AB LED T8. On top of this, the lamp has a switch that allows you to switch between 3000K, 3500K, 4000K, 5000K and even 6500K color temps on the lamp itself. This makes it the only SKU you would need for an LED T8 with all the color temps and install methods. In bypass mode, these can be wired via single-end wiring or double-end wiring. ComboDrive Color Select LED T8's are available in 2', 3' and 4'. If used with a ballast, actual light output and wattage draw will vary based on the ballast you are using. High-efficiency lumens per watt which makes this lamp DLC-rated. These color-selectable LED T8 lamps are preset to 4000K and can be adjusted accordingly during install.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 7.5W |
| Fluorescent Equivalent | 18W |
| Old LED Version | KT-LED7.5T8-24G-8XX-X3 |
| Lumens | 1100-1175 |
| Lumens Per Watt | 146-156 |
| Volts | 120-277V |
| CRI | >80 |
| Color Temperature | 3000K/3500K/4000K/5000K/6500K |
| Kelvin | 3000K-6500K |
| Dimmable | Yes |
| Base Type | G13 Bi-Pin |
| Bulb Shape | T8 |
| Wiring | Single/Double-Ended |
| Lens Type | Frosted |
| Construction | Glass |
| Nominal Size | 24" |
| Length (M.O.L.) Inches | 23.20 |
| Width (Inches) | 1.10 |
| Height (Inches) | N/A |
| Beam Angle | 240° |
| Light Emitting Area | 325° |
| Driver | Internal |
| Rated Hours | 50,000 |
| DLC Listed | Yes |
| Wet/Damp Rated | N/A |
| Maximum Temp | 113°F |
| Minimum Starting Temp | -4°F |
| Certifications | DLC/UL |
| Case Quantity | 25 |
| Warranty | 5 Year |
| Manufacturer Part # | KT-LED7.5T8-24G-8CSJ-X3 |
| Manufacturer Order # | N/A |
| Premier Part # | LT82FTCCT7.5WCOMBO-K |
