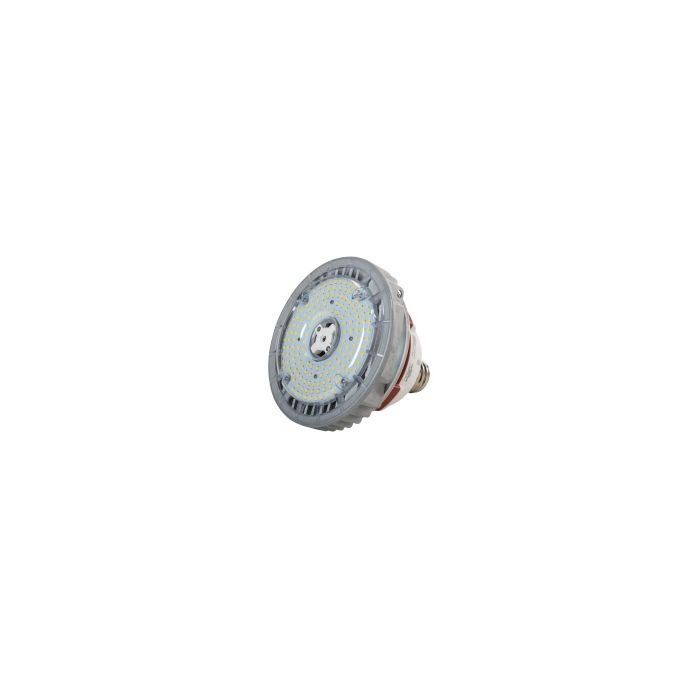

Keystone KT-LED60HID-V-EX39-830-D Vertical LED HID E39 60W 3000K
- Premier# LOC3060WE39/VERT-K
- Keystone KT-LED60HID-V-EX39-830-D 60W Direct Drive Vertical HID Replacement
Keystone KT-LED60HID-V-EX39-830-D Vertical LED HID E39 60W 3000K
Replace your high watt HID Downlights with Keystone's 60W, 80W or 115W Ballast Bypass Vertical-Base HID LED Replacement. At 60W, it delivers up to 8100 lumens in 5000K, allowing it to replace up to 200W HID downlights. Bypasses the existing ballast and wires direct to line voltage. Non-dimmable. Available in E39 mogul base or E26 medium base, and color temperatures of 3000K, 4000K or 5000K (3000K is E39 mogul only and 5800 lumens). Rated for 50,000 hours with a 5 year manufacturer warranty. Delivers 5% uplight. Lamp top has a low-voltage AUX port for lamp level sensor controls. Suitable for use in fully-enclosed fixtures. IP40 Rated.
Brochures & Cut Sheets
Keystone Direct Drive Vertical 60W LED HID Replacement Spec Sheet
| Manufacturer | Keystone |
|---|---|
| Watts | 60W |
| HID Equivalent | 200W |
| Lumens | 5800 |
| Lumens Per Watt | 97 |
| Volts | 120-277V |
| CRI | >80 |
| Color Temperature | 3000K |
| Kelvin | 3000K |
| Dimmable | No |
| Base Type | EX39 |
| Bulb Shape | Corn Cob |
| Length (M.O.L.) Inches | 6.61 |
| Diameter (Inches) | 6.88 |
| Beam Angle | 180° Visible Light Area |
| Rated Hours | 50,000 |
| Energy Star Rated | No |
| DLC Listed | Yes |
| Wet/Damp Rated | IP40 |
| Rated for Enclosed Fixtures | Yes |
| Maximum Temp | 140°F |
| Minimum Starting Temp | -20°F |
| Case Quantity | 1 |
| Warranty | 5 Year |
| Manufacturer Part # | KT-LED60HID-V-EX39-830-D |
| Manufacturer Order # | KT-LED60HID-V-EX39-830-D |
| Premier Part # | LOC3060WE39/VERT-K |
