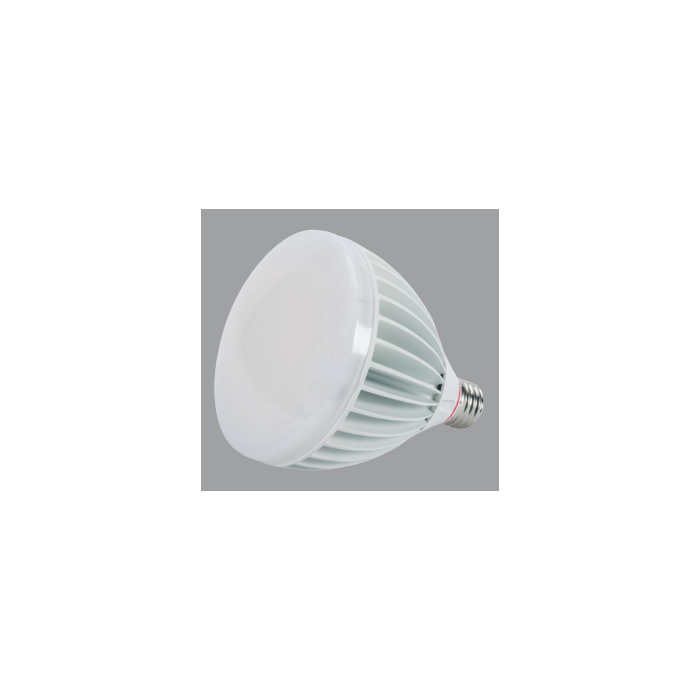

Keystone KT-LED48HID-V-E26-850-S 48W LED Vertical 175W HID Replacement 5000K
- Premier# NLED0601
- Keystone KT-LED48HID-V-E26-850-S 48W Smart Drive LED HID Replacement
Keystone KT-LED48HID-V-E26-850-S - Ballast Compatible LED Replacement for 175W HID
Keystone's SmartDrive HID Replacement LED lamps allow for easy upgrades to your existing HID fixtures. No rewiring needed as these are plug and play, working on the existing magnetic ballast. Designed to work on the following HID ballasts with ANSI Codes: M56/M137/M152. Suitable for dry or damp locations, and rated for enclosed fixtures. Install only in vertical, base-up orientation. Lower wattage draw from lamp relative to the HID lamp allows for longer ballast life. When retrofitted, existing fixture changes from a Lagging (Inductive) Power Factor Source to a Leading (Capacitive) Power Factor Source; this change means the building's overall electric power factor may be improved. Does not work on Reactor or Electronic Ballasts.
Brochures & Cut Sheets
Keystone 48W LED Ballast Compatible HID Replacement Spec Sheet
Manufacturer | Keystone |
---|---|
Watts | 48W |
HID Equivalent | 175W |
Lumens | 5600 |
Lumens Per Watt | 116.67 |
Volts | Ballast Dependent |
CRI | 80 |
Color Temperature | 5000K |
Kelvin | 5000K |
Dimmable | No |
Base Type | E26 |
Bulb Shape | Corn Cob |
Length (M.O.L.) Inches | 5.70 |
Diameter (Inches) | 4.72 |
Beam Angle | N/A |
Rated Hours | 50,000 |
Energy Star Rated | No |
Wet/Damp Rated | Damp Rated |
Rated for Enclosed Fixtures | Yes |
Maximum Temp | 85°F |
Minimum Starting Temp | -40°F |
Case Quantity | 1 |
Warranty | 5 Year |
Manufacturer Part # | KT-LED48HID-V-E26-850-S |
Manufacturer Order # | KT-LED48HID-V-E26-850-S |
Premier Part # | NLED0601 |
