Keystone KT-LED25T5HO-48GC-8CSJ-DX2 25W Type B LED T5HO CCT Select 3000K-6500K
- Buy 25 for $13.99 each and save 22%
- Buy 50 for $13.75 each and save 23%
- Buy 100 for $13.20 each and save 26%
- Buy 250 for $12.75 each and save 29%
- Premier# LT5CCT25WCG-K
- Keystone KT-LED25T5HO-48GC-8CSJ-DX2
Keystone KT-LED25T5HO-48GC-8CSJ-DX2 25W Type B LED T5HO CCT Select 3000K-6500K

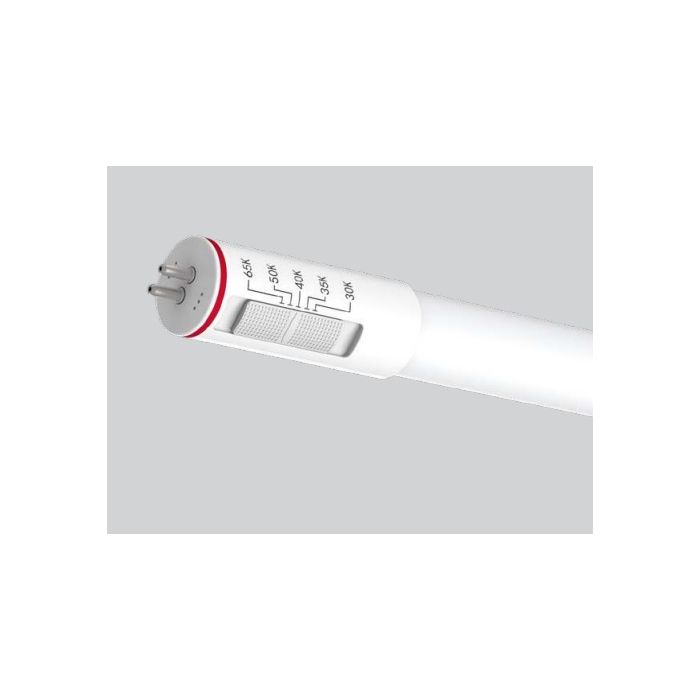

Keystone Technologies continues to build out their color-selectable linear LED line with these CCT Select LED T5 lamps. Available in 12.5W T5HE for replacing 28W T5HE fluorescents, or 25W T5HO for replacing 54W T5HO fluorescents. This version is the 25W T5HO lamp that delivers 3300-3500 lumens on 25W. Choose the color emitted between 3000K, 3500K, 4000K, 5000K or 6500K on the lamp itself. DX2 install method means when bypassing the ballast, you can re-wire it to single-end wiring or keep it at double-end wiring (like fluorescent technology). This saves on labor and adds to the versatility of the lamp. Coated-glass design makes it worthy of being used in food-safe applications. Rated for 50,000 hours with a 5 year manufacturer warranty. G5 Mini Bi-Pin base and DLC rated.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 25W |
| Fluorescent Equivalent | 54W |
| Old LED Version | KT-LED25T5HO-48GC-8XX-DX2 |
| Lumens | 3300-3500 |
| Lumens Per Watt | 132-140 |
| Volts | 120-277V |
| CRI | >80 |
| Color Temperature | 3000K-6500K |
| Kelvin | 3000K-6500K |
| Dimmable | No |
| Base Type | G5 |
| Bulb Shape | T5 |
| Wiring | Single/Double-Ended |
| Lens Type | Frosted |
| Construction | Coated Glass |
| Nominal Size | 48" |
| Length (M.O.L.) Inches | 45.24 |
| Width (Inches) | 0.81 |
| Height (Inches) | N/A |
| Beam Angle | 142° |
| Light Emitting Area | N/A |
| Driver | Internal Driver |
| Rated Hours | 50,000 |
| DLC Listed | Yes |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 113°F |
| Minimum Starting Temp | -4°F |
| Certifications | UL/DLC |
| Case Quantity | 25 |
| Warranty | 5 Year |
| Manufacturer Part # | KT-LED25T5HO-48GC-8CSJ-DX2 |
| Manufacturer Order # | KT-LED25T5HO-48GC-8CSJ-DX2 |
| Premier Part # | LT5CCT25WCG-K |
