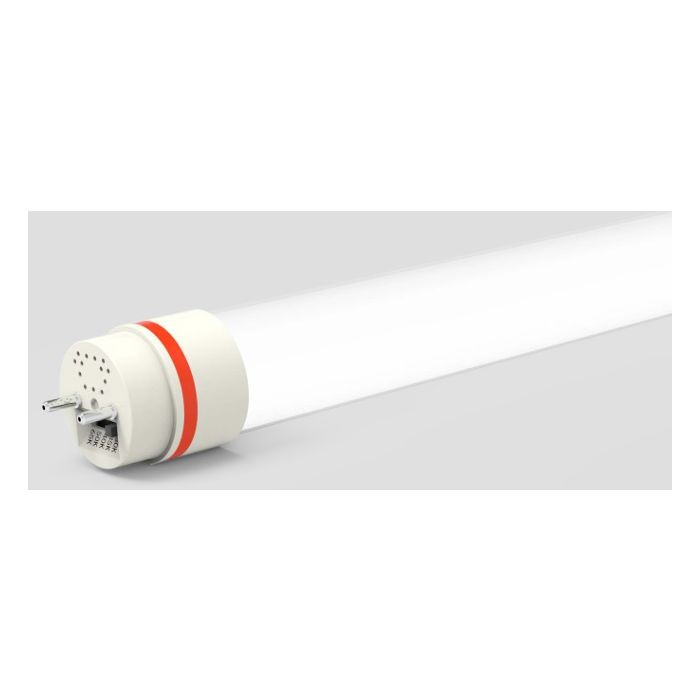

Keystone KT-LED13T8-48GC-8CSJ-X3 13W Type D Glass Coated LED T8 CCT Select 3000K-6500K
- Buy 25 for $9.95 each and save 29%
- Buy 50 for $8.95 each and save 36%
- Buy 100 for $8.50 each and save 39%
- Buy 250 for $7.95 each and save 43%
- Premier# LT8CCT13WCGCOMBO-K
- Keystone KT-LED13T8-48GC-8CSJ-X3
Keystone KT-LED13T8-48GC-8CSJ-X3 13W LED T8 Type D Combo Drive 3000K-6500K Color Select Glass Coated
Keystone Tech upgraded their Combo Drive 4' LED T8 with glass coating and color selectability. You can now choose between 3000K, 3500K, 4000K, 5000K and 6500K color temps. GC version is a glass coating that keeps the glass in tact, allowing it to be safely used in food applications. At 13W this LED T8 can deliver 2000+ lumens in ballast bypass mode, or it can work with a compatible ballast (lumen output will depend on your ballasts). DLC rated and rated for 50,000 hours. Lamp installs by bypassing the ballast and wiring direct via either single-end or double-ended wiring.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 13W |
| Fluorescent Equivalent | 32W |
| Old LED Version | KT-LED13T8-48G-8CSJ-X3 |
| Lumens | 1950-2050 |
| Lumens Per Watt | 149-157 |
| Volts | 120-277V |
| CRI | >80 |
| Color Temperature | 3000K-6500K |
| Kelvin | 3000K-6500K |
| Dimmable | No |
| Base Type | G13 |
| Bulb Shape | T8 |
| Wiring | Single/Double-Ended |
| Lens Type | Frosted |
| Construction | Coated Glass |
| Nominal Size | 48" |
| Length (M.O.L.) Inches | 47.20 |
| Width (Inches) | 1.10 |
| Height (Inches) | N/A |
| Beam Angle | 240° |
| Light Emitting Area | 325° |
| Driver | Internal Driver |
| Rated Hours | 50,000 |
| DLC Listed | Yes |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 113°F |
| Minimum Starting Temp | -4°F |
| Certifications | UL/DLC |
| Case Quantity | 25 |
| Warranty | 10 Year |
| Manufacturer Part # | KT-LED13T8-48GC-8CSJ-X3 |
| Manufacturer Order # | KT-LED13T8-48GC-8CSJ-X3 |
| Premier Part # | LT8CCT13WCGCOMBO-K |
