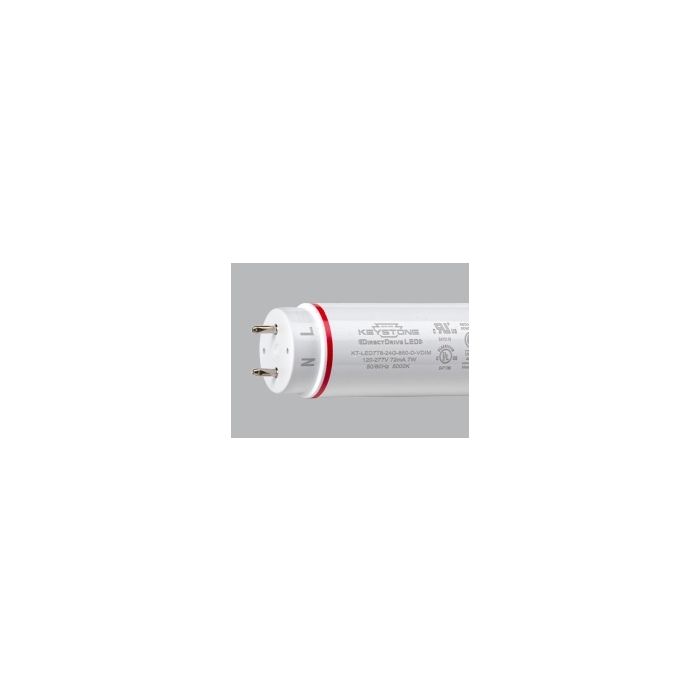

Keystone KT-LED12T8-36GC-835-D-VDIM 3' 12W 0-10V Dimmable LED T8 3500K
- Buy 25 for $16.00 each and save 16%
- Buy 50 for $14.50 each and save 23%
- Premier# LT83FT35K12W/0-10V-K
- Keystone KT-LED12T8-36GC-835-D-VDIM 3' 12W 0-10V Dimmable LED T8 3500K
Keystone KT-LED12T8-36GC-835-D-VDIM 3' 12W 0-10V Dimmable LED T8 3500K
Keystone has expanded on their dimmable Type B LED T8 line with new 2', 3', and 4' glass options! Very rare to find dimmable LED T8 tubes especially in odd sizes like 2' or 3'. Glass-coated for NSF rating as well as DLC listed. Available in 3500K, 4000K and 5000K color temps. Ballast bypass via single-end wiring; the other end has the 0-10V low voltage dimming wires. Must be paired with a 0-10V dimmer like the Lutron Nova-T NTSTV-DV dimmer.
Brochures & Cut Sheets
| Manufacturer | Keystone |
|---|---|
| Watts | 12W |
| Fluorescent Equivalent | 25W |
| Old LED Version | N/A |
| Lumens | 1500 |
| Lumens Per Watt | 125 |
| Volts | 120-277V |
| CRI | >83 |
| Color Temperature | 3500K |
| Kelvin | 3500K |
| Dimmable | 0-10V |
| Base Type | G13 Bi-Pin |
| Bulb Shape | T8 |
| Wiring | Single-Ended |
| Lens Type | Frosted |
| Construction | Glass Coated |
| Nominal Size | 36" |
| Length (M.O.L.) Inches | 35.19 |
| Width (Inches) | 1.10 |
| Height (Inches) | N/A |
| Beam Angle | 163° |
| Light Emitting Area | 325° |
| Driver | Internal |
| Rated Hours | 50,000 |
| DLC Listed | Yes |
| Wet/Damp Rated | N/A |
| Maximum Temp | 113°F |
| Minimum Starting Temp | -4°F |
| Certifications | NSF/DLC/UL |
| Case Quantity | 25 |
| Warranty | 5 Year |
| Manufacturer Part # | KT-LED12T8-36GC-835-D-VDIM |
| Manufacturer Order # | N/A |
| Premier Part # | LT83FT35K12W/0-10V-K |
