Keystone KT-ALED140PS-M1-3-PMA-840-VDIM-P 140W Power Select LED Area Light 4000K Type III w/ Pole Mount

SKU
LALM140KPS140WT3/PM-K
Add to Compare
$324.95
  • Buy 4 for $269.95 each and save 17%
  • Premier# LALM140KPS140WT3/PM-K
  • Keystone KT-ALED140PS-M1-3-PMA-840-VDIM-P 140W Power-Select LED Area Light 4000K w/ Adjustable Pole Mount

Keystone KT-ALED140PS-M1-3-PMA-840-VDIM-P 140W Power Select LED Area Light 4000K Type III w/ Pole Mount

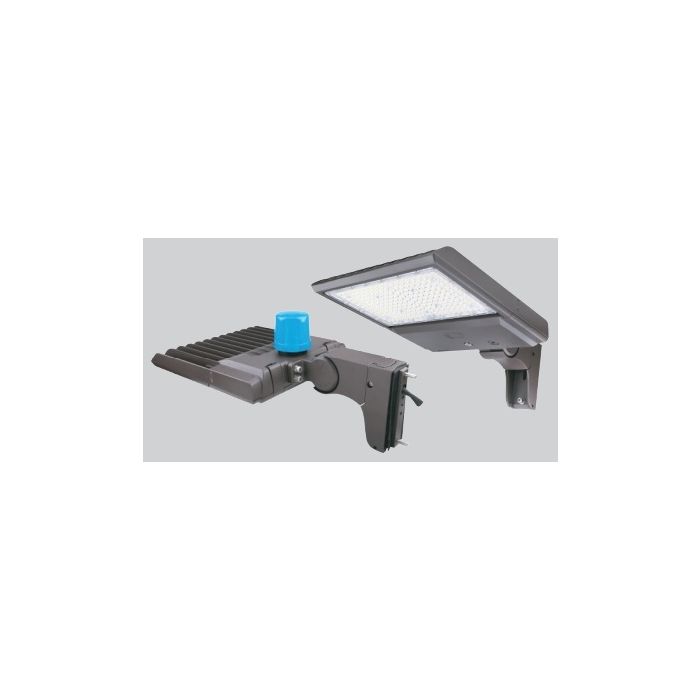

This Keystone LED Area Light Premium Package includes a 140W LED Area light that is power selectable from 140W to 100W or 70W. Also includes adjustable pole mount kit, 3-pin twist-lock photocell (with 7-pin receptacle and shorting cap) and 6kV built-in + 10kV external surge protection. Keystone's XFIT LED Area Lights meet all the needs for any outdoor pole application. Available in small, medium and large housing for replacing anywhere from 175W HID, 250W HID or 320W HID all the way up to the more common 400W HID fixtures or 750W and 1000W HIDs. High efficacy of 136-142 lumens per watt. Available in 120-277V standard with 480V options as well for the higher wattage replacements which are more likely to be high voltage. Includes 3-pin receptable and shorting cap and 10kV external surge protection. Mounting options include fixed pole mount kit, adjustable pole mount kit, slipfitter mounting kit or trunnion mount kit (all mounting options sold separately). Various pole mounting accessories available direct from Keystone. 0-10V dimming standard. Each wattage and voltage available in 4000K or 5000K, as well as Type III or Type V distribution. Bronze housing. ALED fixtures are rated for 50,000 hours with a 5 year manufacturer warranty. DLC rated.


Brochures & Cut Sheets

Keystone 140W LED Area Light Fixture Keystone 140W ALED LED Area Light Spec Sheet

More Information
Manufacturer Keystone
Volts 120-277V
HID Equivalent 175W-400W
Fluorescent Equivalent N/A
Watts 70W/100W/140W
Lumens 10,350/14,300/19,300
Lumens Per Watt 138-148
CRI >80
Color Temperature 4000K
Dimmable 0-10V
Distribution Type III
Finish Bronze
Length (M.O.L.) Inches 23.23
Height (Inches) 6.65
Width (Inches) 13.11
Wet/Damp Rated IP65 Wet Rated
Maximum Temp 122ºF
Rated Hours 50,000
Warranty 5 Year
Manufacturer Part # N/A
Manufacturer Order # KT-LEDA140PS-M1-3-PMA-840-VDIM-P
Premier Part # LALM140KPS140WT3/PM-K
