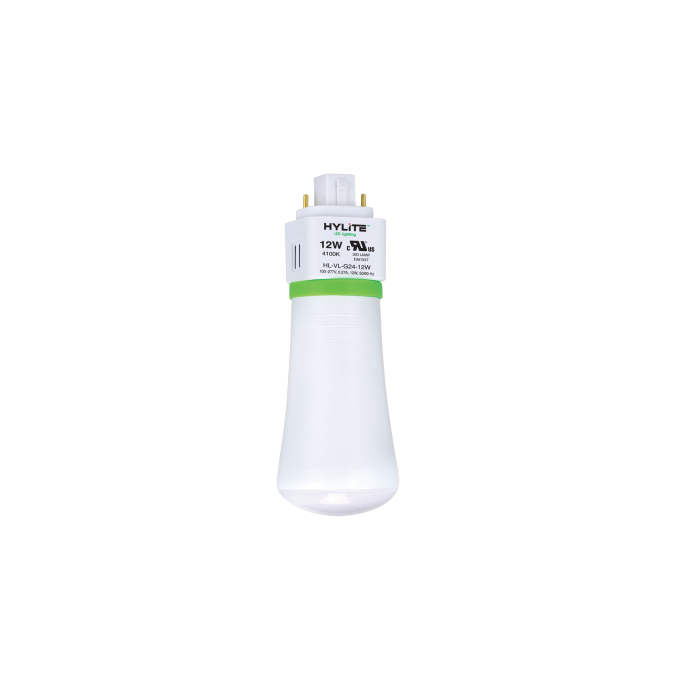

HyLite HL-VL-G24-12W Vertical LED PL 12W G24 Base Bypasses Ballast Case/10
- Premier# LPLxxK12WVERT-H
- HyLite HL-VL-G24-12W - Type B Vertical LED PL G24 Base Case/10
HyLite HL-VL-G24-12W Vertical LED PL 12W G24 Base Bypasses Ballast Case/10
HyLite's high performance LED PL lamps now have a vertical mount configuration option. This 12W Vertical Mount LED PL bypasses the existing CFL ballast and connects directly to the line voltage. Replaces CFL bulbs up to 42W and 120W incandescent bulbs, saving 70-90%+ on energy! Rated for 50,000 hours, saving even more on long-term maintenance. Universal G24 base will retrofit any G24d or G24q CFL lamp. Available in 2700K, 3500K, 4100K and 5000K color temperatures.
Brochures & Cut Sheets
| Manufacturer | HyLite |
|---|---|
| Watts | 12W |
| CFL Equivalent | 42W |
| Lamp Type | 4-Pin LED PL |
| Lumens | 1140-1260 |
| Lumens Per Watt | 116 |
| Volts | 100-277V |
| CRI | >86 |
| Color Temperature | 2700K/3500K/4100K/5000K |
| Dimmable | No |
| Base Type | G24d/G24q |
| Beam Angle | 120° |
| Orientation | Vertical |
| Lens Type | Frosted |
| Length (M.O.L.) Inches | 5.75 |
| Width (Inches) | 2 |
| Height (Inches) | N/A |
| Rated Hours | 50-60,000 |
| DLC Listed | No |
| Wet/Damp Rated | Damp Rated |
| Maximum Temp | 140°F |
| Minimum Starting Temp | -22°F |
| Certifications | UL |
| Case Quantity | 25 |
| Warranty | 5 Year |
| Manufacturer Part # | HL-VL-G24-12W |
| Manufacturer Order # | N/A |
| Premier Part # | LPLxxK12WVERT-H |
