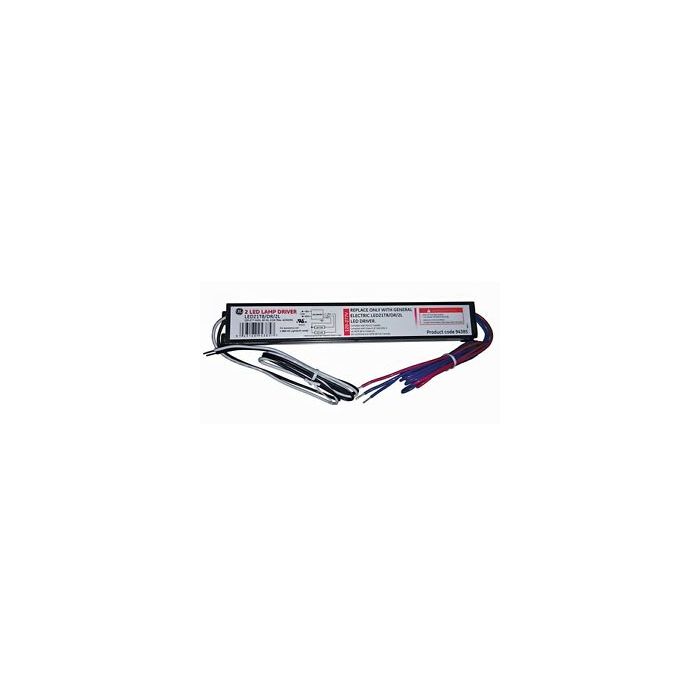

GE 60041 LED21T8/DR/D/2L Lightech Dimming Driver - 2 Lamps Case/10
- Buy 18 for $279.50 each and save 19%
- Premier# 60041
- 42 Watt Range GE Lightech Dimming Driver 60041 (2 lamps)
- LED21T8/DR/D/2L
GE 60041 LED21T8/DR/D/2L Lightech Dimming Driver - 2 Lamps
GE 42 Watt Range Lightech™ Driver 60041 is designed to operate 2 compatible GE T8 LED Tube. This results in a far more efficient lighting solution compared to a fluorescent tube. 60041 Dimming Driver allows for full dimming functionality. GE's dedicated LED drivers like 60041 have been discontinued, please check out their LumenSelect LED Drivers which are now their standard stocked Type C drivers.
- Input Wattage Range (W): 42
- Output Current (A): 0.62*2
- Volts : 120-277V
- Efficiency: >.9%
- Output Type: DC
- Output Voltage Range: 27-33V
- Dimmable: Requires 0-10V dimmer like the Lutron NovaT NTSTV-DV 0-10V Dimmer
- SKU: LED21T8/DR/D/2L
- Ambient Temperature Min: -4°F
- Ambient Temperature Max: 104°F
- Case Temperature: 158°F
- Casing Length: 9.5 inches
- Casing Width: 1.3 inches
- Casing Height: 1 inch
Brochures & Cut Sheets
| Manufacturer | GE |
|---|
