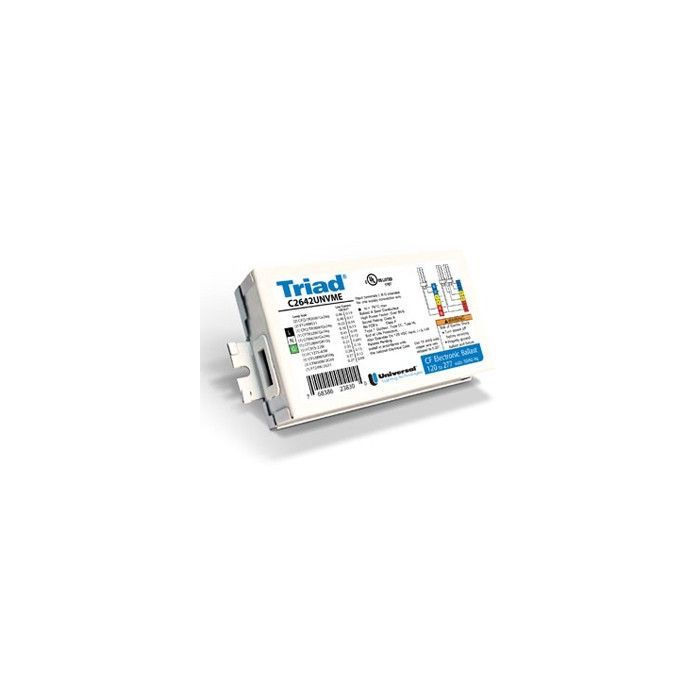

Universal C2642UNV Electronic CFL Ballast
- B2642CFL
- Program / Rapid Start High Power Ballast
Universal C2642UNV Compact Fluorescent PL Ballast - Rapid Start
The Universal 2642UNV is an electronic compact fluorescent ballast designed to run the following lamps - CFM42W/GX24q, CFTR32W/GX24q, CFQ26W/GX24q, CFTR26W/GX24q, CFS28W/GR10q, FC9T5-22W, FC12T5-40W, CFS38W/GR10q, CFM36W/2G10, or FT24W/2G11.
Meets ANSI Standard C82.11. Meets FCC Part 18. Suitable for use in air handling spaces when NEC wiring guidelines are followed. Operation frequency range: above 60 kHz
Brochures & Cut Sheets
| Manufacturer | Universal |
|---|---|
| Number of Lamps | 2 |
| Starting Method | Program Start |
| Ballast Factor | High |
| Volts | 120-277V |
| Dimmable | No |
| Lamp Type | CFL |
| Input Watts | N/A |
| Nominal Line Amps | N/A |
| Power Factor | N/A |
| Harmonic Total | N/A |
| Crest Factor | N/A |
| Minimum Starting Temp | 0°F |
| Case Quantity | 20 |
| Manufacturer Part # | C2642UNV |
| Manufacturer Order # | N/A |
| Premier Part # | B2642CFL |
