Universal Everline LED Sign Tube 6 Foot 18W 36W Single/Double Sided - 1/Ea
- Universal Everline 6' Sign Tube - Single or Double Sided
- Requires one or more 24V 100W LED drivers to function
- --Buy 100W LED Sign Tube Driver--
6' LED Sign Tubes from Universal Everline
Universal Everline LED Sign Tubes are designed specifically for retrofitting signs that are lighted using T12HO or T8HO. 24V Constant voltage product that allows for simple class II wiring. Run up to 32' of single sided tubes (16' double sided tubes) on one 100W power supply. 90° adjustable RDC style endcaps for correct lamp orientations. Ideal for vertical or horizontal installations. Designed for daisy-chain or parallel wiring. Utilizes the same spacing as standard fluorescent systems. At 110 lumens per watt, up to 60% more efficient than fluorescent counterparts. Mounts as close as 5" from the acrylic face.
- Watts: 18W/36W
- Rated Hours: 50,000
- Lumens Avg: 2040 Lumens / 4080 Lumens
- Voltage: 24V

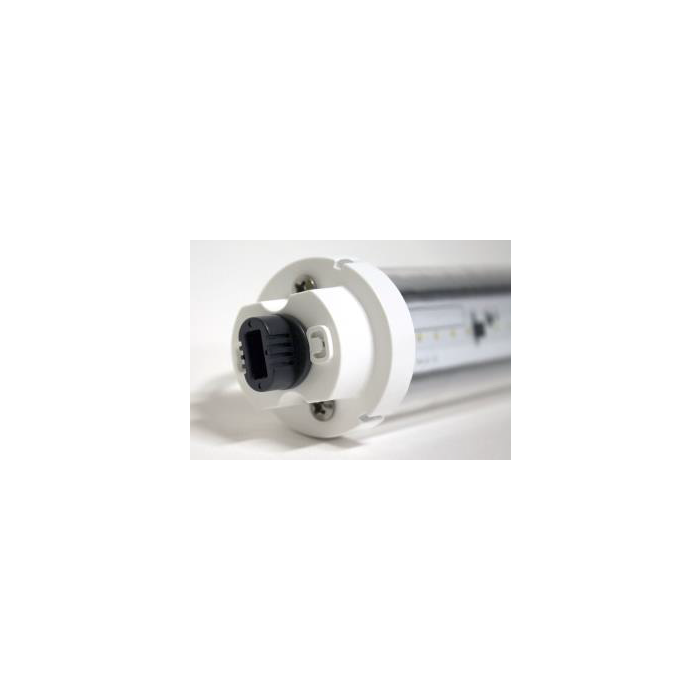

- Standard R17D Recessed Double Contact (RDC) lampholders
- Kelvin: 6500K
- Dimmable: Non-Dimmable
- Warranty: 5 Years
- Length: 69.8"
- Diameter: 1.5"
- Lead Length: 8" Each
- Case Quantity: 4
- Regulatory: UL8750, CSA250.13-14, RoHS Compliant
- Manufacturer Item #: Universal Everline ST72-865-SS004C + ST72-865-DS004C
