TCP LDT8412C 4-Lamp External Dimming Driver for Type C LED T8 Tubes
- Buy 12 for $24.28 each and save 14%
- TCP LDT8412C 4-Lamp Dimming Driver for Type C LED T8
TCP LDT8412C 4-Lamp External Dimming Driver for Type C LED T8 Tubes
TCP now carries Type C LED T8 and T5 lamps. Similar to the way fluorescents operate off a ballast, Type C linear LED lamps utilize an external LED driver for power. This results in the most efficient retrofit method along with low voltage dimming capability (0-10V dimmer sold separately). TCP's Type C LED T8 lamps come in 12W and 3500K, 4000K or 5000K color temps. They are powered by a 2-lamp, 3-lamp, or 4-lamp LED Driver. TCP also carries Type C LED T5HE and LED T5HO lamps that come in 3500K, 4000K or 5000K. They also require a 2-lamp or 4-lamp TCP dimming driver to be powered. All lamps are constructed with PET-coated glass for extra protection and a wider beam spread. 50,000 hours with a 5 year manufacturer warranty. 25 per case.
Brochures & Cut Sheets
| Manufacturer | TCP |
|---|---|
| Volts | 120-277V |
| Input Current Max | 60W |
| Input Power Max | 60W |
| Input Frequency | 50/60Hz |
| Max. Current | N/A |
| Power Factor | >0.9 |
| THD Max | N/A |
| Output Current | N/A |
| Output Voltage | N/A |
| Output Power | N/A |
| Efficiency | N/A |
| Case Style | N/A |
| Dimmable | 0-10V |

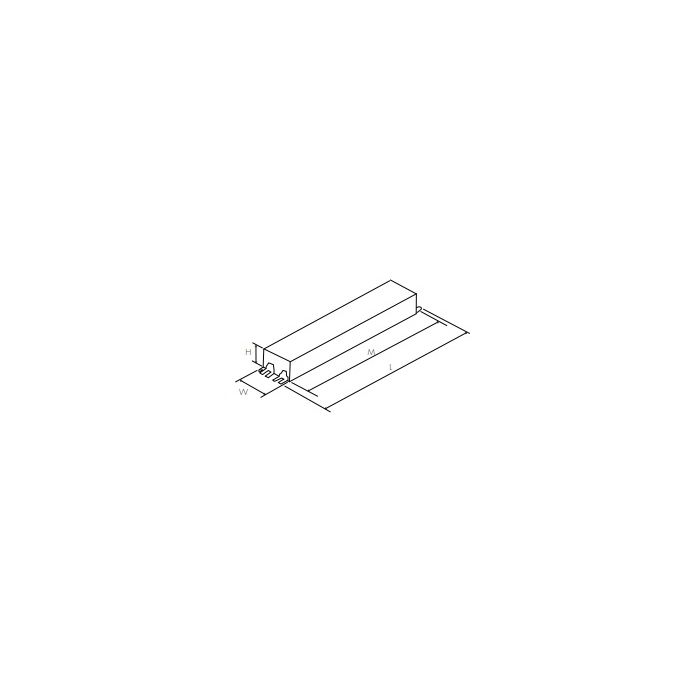

| Length (M.O.L.) Inches | 5.4 |
| Width (Inches) | 1.7 |
| Height (Inches) | 1.1 |
| Maximum Temp | 45°C |
| Minimum Starting Temp | -20°C |
| Wet/Damp Rated | N/A |
| Certifications | UL |
| Warranty | 5 Year |
| Manufacturer Part # | LDT8412C |
| Premier Part # | LDT8412C |
