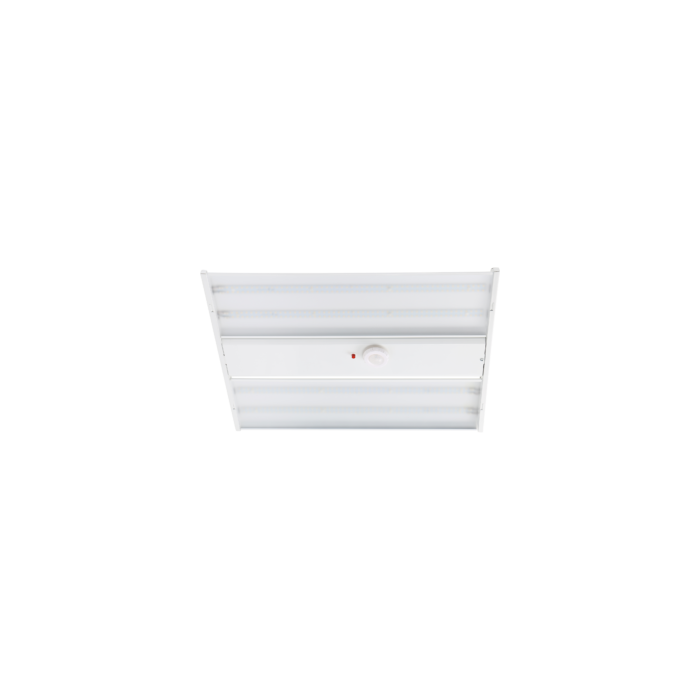

Spring Lighting Group SLG HE Series LED Highbay 90W-180W

  • SLG HE Series LED Highbay

SLG LED High Bay Fixture - Fluorescent/HID Highbay Replacement

SLG LED Highbay fixtures are designed to replace traditional HID highbays or fluorescent highbays one-for-one. High temperature acrylic lens reduces yellowing and directs light to desired locations. Low-profile, durable design with easy installation (Chain-hanging hardware included). Available in three lumen packages - 90W (11,700 lumens), 130W (17,000 lumens) and 180W (23,500 lumens). 120-277V standard, 347-480V is an option.


Brochures & Cut Sheets

SLG HE LED Highbay SLG HE Series LED Highbay Spec Sheet

More Information
Manufacturer SLG
Volts 120-277V / 347-480V
HID Equivalent Up to 400W HID
Watts 90W/130W/180W
Lumens 11,700/17,000/23,500
Lumens Per Watt 130-131
CRI 80+
Color Temperature 4000K-5000K
Dimmable 0-10V
Distribution Clear Lens Diffuser
Length (M.O.L.) Inches 23.92
Height (Inches) 1.83
Width (Inches) 10.31 (90W)-19.69 (130W-180W)
Wet/Damp Rated Damp Rated
Maximum Temp 50°C
Rated Hours 50,000
Warranty 5 Year
Manufacturer Order # HE-xxx-G1-BLANK-xk
Write your content here...
Back to Top

SLG HE Series LED Highbay Spring Lighting Group replace HID High Bay

$174.95
