Litetronics LED High Bay Round Fixture 16" IP65 DLC

Litetronics LED High Bay Round Fixture 16" IP65 DLC

Be the first to review this product


Quick Overview

  • Litetronics Round LED Highbay Fixture

  • IP65 Rated - 0-10V Dimming - Black Housing

* Required Fields

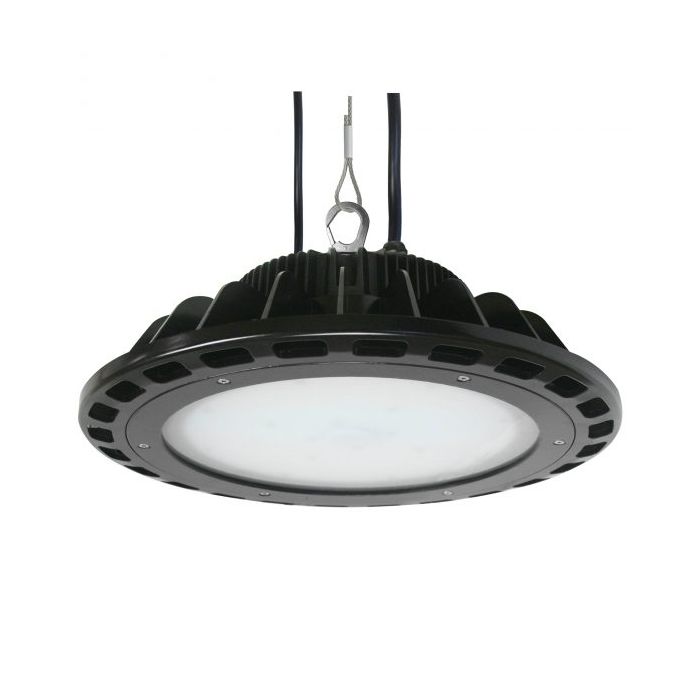

Litetronics IP65 Round LED High Bay Fixture 16"

Replace old inefficient HID and fluorescent systems with Litetronics' new compact LED high bay. IP65 rated allowing it to be used indoors or outdoors for direct/indirect lighting or wall washing. This round LED high bay weighs just 16 lb. with the 125W version, while the 185W and 220W versions weigh just 18 lb. 15.75" diameter and 5.19" tall for an easy install compared to larger, more cumbersome fixtures. When paired with Litetronics yoke bracket and other accessories, these fixtures can be adopted for a wide array of applications. Optional PIR sensor for prox sensoring. Polycarbonate lens with NSF approvals.

Brochures & Cut Sheets

Litetronics Round LED Highbay Fixture Litetronics LED High Bay Spec Sheet

Litetronics Round LED Highbay Install Guide Litetronics LED High Bay Install Instructions

Litetronics Round LED Highbay Dimmer Compatibility Litetronics LED High Bay Dimmer Compatibility

Additional Information

Volts 120-277V
HID Equivalent 250W-1000W
Fluorescent Equivalent N/A
Watts 125W/185W/220W
Lumens 16,000/24,000/29,000
Lumens Per Watt 118-120
CRI 84
Color Temperature 4000K/5000K
Dimmable 0-10V
Distribution Uniform circular
Length (M.O.L.) Inches N/A
Height (Inches) 5.2
Width (Inches) 16
Wet/Damp Rated Waterproof IP 65
Maximum Temp N/A
Rated Hours 70,000
Warranty 7 Year
Manufacturer Litetronics
Manufacturer Order # HB-XXX-B-X-XX-DL (will vary based on options)
Premier Part # HB-XXX-B-X-XX-DL
