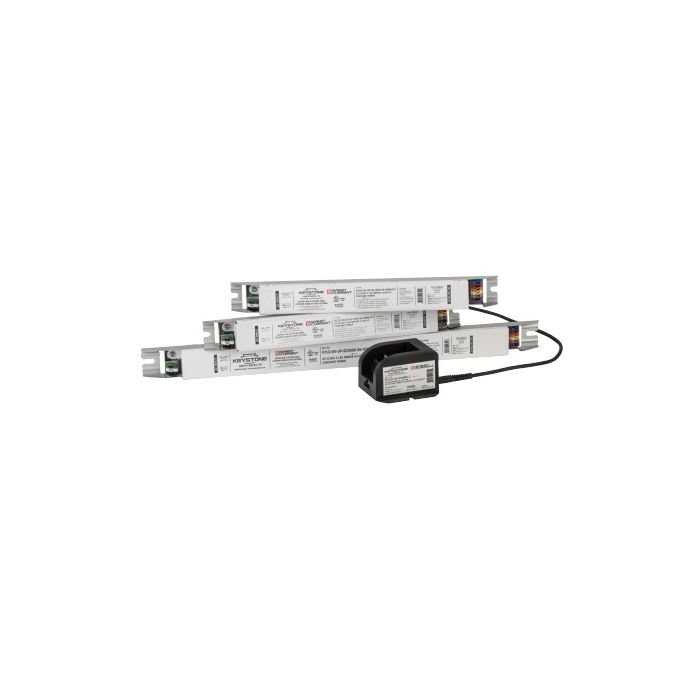

Keystone KTLD-30-UV-SC1050-56-VDIM-U7 SmartCurrent Programmable LED Driver

SKU
KTLD-30-UV-SC1050-56-VDIM-U7
Add to Compare
$44.95
  • Keystone KTLD-100-UV-24V

Keystone KTLD-30-UV-SC1050-56-VDIM-U7 SmartCurrent Programmable LED Driver

Keystone Smart Current Programmable LED Drivers eliminate the guesswork with finding the right LED driver for your application. These programmable LED drivers offer the versatility needed to replace various LED drivers. Smart Current features dim-to-off mode, enabling dimming down to 1%, for precise tuning of output current. Output current is programmable with the Keystone Smart Current Cradle (purchased separately). 30W version has 350-1050 mA Output, 50W has 470-1400 mA Output and 85W has 500-2600 mA Output.


Brochures & Cut Sheets

Keystone Programmable LED Driver Keystone Programmable LED Driver Spec Sheet

More Information
Manufacturer Keystone
Volts 120-277V
Input Current Max 0.31A @ 120V
Input Power Max N/A
Input Frequency 50/60Hz
Max. Current N/A
Power Factor >0.9
THD Max <20% under 120-277V
Output Current 350-1050mA
Output Voltage 10-56V
Output Power 30W
Efficiency 86%
Case Style U7
Dimmable 0-10V
Length (M.O.L.) Inches 11.02
Width (Inches) 1.20
Height (Inches) 1.00
Maximum Temp 122°F
Minimum Starting Temp -4°F
Wet/Damp Rated N/A
Certifications UL 8750
Warranty 5 Year
Manufacturer Part # KTLD-30-UV-SC1050-56-VDIM-U7
Manufacturer Order # KTLD-30-UV-SC1050-56-VDIM-U7
Premier Part # KTLD-30-UV-SC1050-56-VDIM-U7
